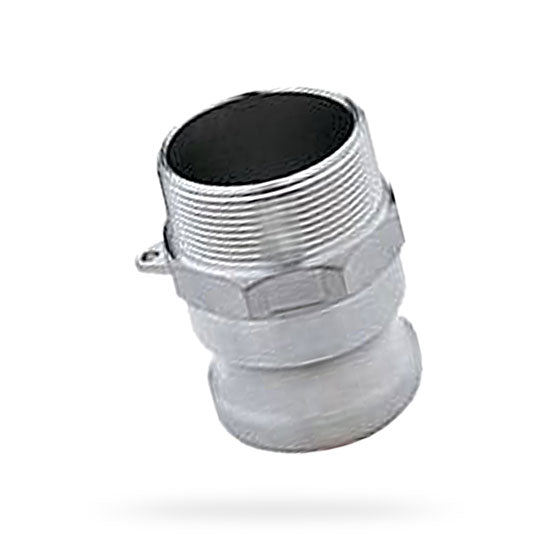

Stainless Steel MPT x Male Camlock - Type F
Commonly used in food or sanitary environments, as well as corrosive applications, BARR's standard gaskets are black Buna-N Nitrile with 304 stainless steel arms and pins. Remember to ensure materials are compatible with the fluid being conveyed. EPDM, Viton, Teflon, Neoprene, etc. gaskets are available where a higher working pressure is required. These camlocks are not for use with compressed air, gases or steam.
The rated working pressures of our 316 stainless camlocks at ambient temperatures are as follows: 1/2" to 2" sizes=250 PSI, 2-1/2" - 3"=200 PSI, 4"=150 PSI, and 6"=100 PSI
Commonly used in food or sanitary environments, as well as corrosive applications, BARR's standard gaskets are black Buna-N Nitrile with 304 stainless steel arms and pins. Remember to ensure materials...
Commonly used in food or sanitary environments, as well as corrosive applications, BARR's standard gaskets are black Buna-N Nitrile with 304 stainless steel arms and pins. Remember to ensure materials are compatible with the fluid being conveyed. EPDM, Viton, Teflon, Neoprene, etc. gaskets are available where a higher working pressure is required. These camlocks are not for use with compressed air, gases or steam.
The rated working pressures of our 316 stainless camlocks at ambient temperatures are as follows: 1/2" to 2" sizes=250 PSI, 2-1/2" - 3"=200 PSI, 4"=150 PSI, and 6"=100 PSI
Couldn't load pickup availability
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| N47-050SS | 1/2 | 1 | Stainless steel MPT x Male Camlock - Type F |
| N47-075SS | 3/4 | 1 | Stainless steel MPT x Male Camlock - Type F |
| D47-100SS | 1 | 1 | Stainless steel MPT x Male Camlock - Type F |
| D47-125SS | 1-1/4 | 1 | Stainless steel MPT x Male Camlock - Type F |
| D47-150SS | 1-1/2 | 1 | Stainless steel MPT x Male Camlock - Type F |
| D47-200SS | 2 | 1 | Stainless steel MPT x Male Camlock - Type F |
| D47-250SS | 2-1/2 | 1 | Stainless steel MPT x Male Camlock - Type F |
| N47-300SS | 3 | 1 | Stainless steel MPT x Male Camlock - Type F |
| N57-400SS | 4 | 1 | Stainless steel MPT x Male Camlock - Type F |
