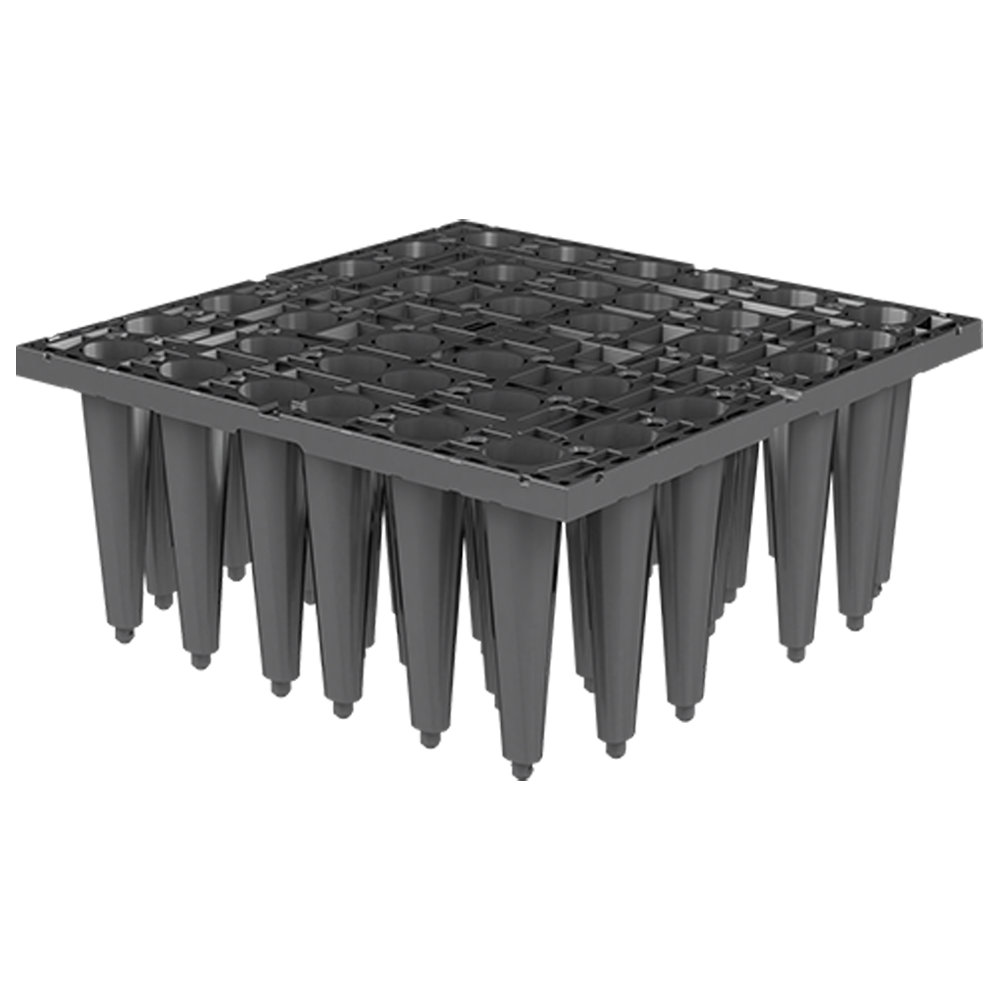

GRAF Ecobloc Smart Stormwater Block
The standard module for implementing large storage volumes in a typical installation window.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
The standard module for implementing large storage volumes in a typical installation window. The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping. These...
The standard module for implementing large storage volumes in a typical installation window.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
Couldn't load pickup availability
Click on Part # to view technical drawing
| Part # / Model | Size | Description | Weight (lbs) |
|---|---|---|---|
| 402500 | 31" x 31" x 13" (800 x 800 x 330mm) |

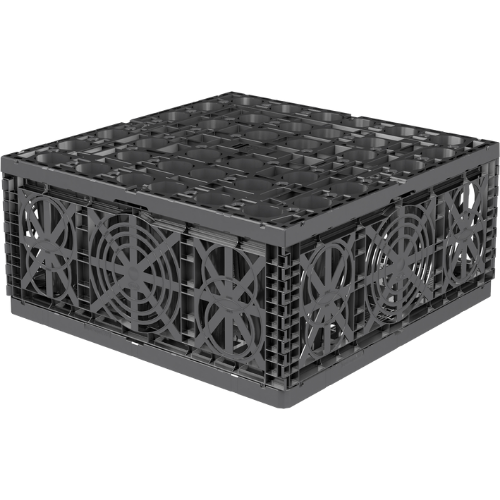

GRAF EcoBloc Inspect Smart (1 Module) (56 USG / 211L) | 22 |
| 402530 | 31" x 31" x 13" | GRAF EcoBloc Inspect Smart Plus (1 Module) (56 USG / 211L) | 25 |
| 402560 | 31" x 31" x 13" | GRAF EcoBloc Inspect Smart Ultra (1 Module) (56 USG / 211L) | 26 |

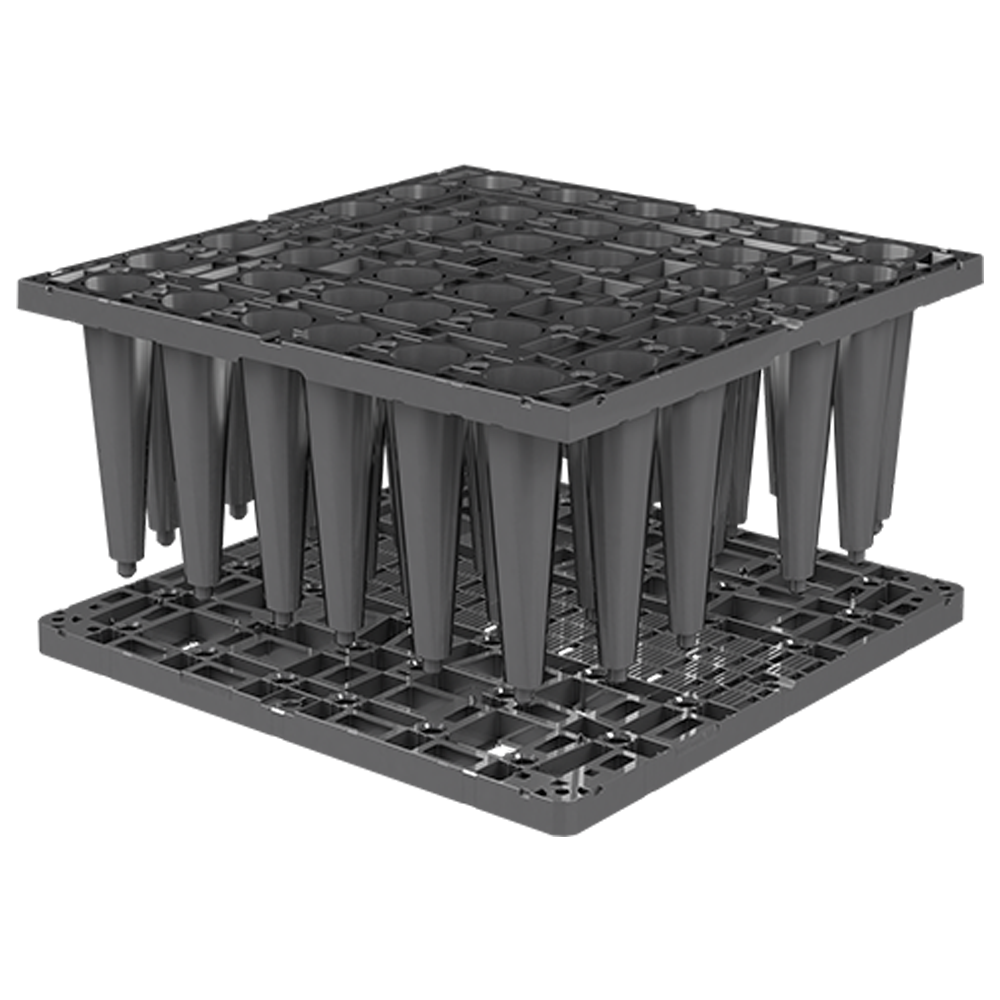

| 402560 | 31" x 31" x 1.6" | GRAF EcoBloc Inspect Smart Baseplate | 9 |
| 402503 | N/A | GRAF EcoBloc Inspect Smart End Plates (Set of 2) | N/A |
| 402028 | N/A | GRAF EcoBloc Connectors (Set of 25) | N/A |
| 369017 | Deaeration End | N/A |
Â
Advanced Stormwater Solutions with the GRAF EcoBloc Smart System
Optimize your stormwater management projects with the innovative GRAF EcoBloc Smart stormwater blocks. Engineered for efficiency, this modular system is ideal for infiltration, retention, and rainwater harvesting applications. Whether you're designing a Graf EcoBloc detention tank or exploring EcoBloc dimensions for your site, this system offers unparalleled performance and versatility.
Why Choose GRAF EcoBloc Smart Stormwater Blocks?
1. High Load Capacity: The GRAF EcoBloc Smart is designed to handle heavy loads, including those from HGVs, meeting HS-25 AASHTO standards. This feature makes the EcoBloc a reliable choice for high-traffic areas.
2. Maximum Storage Efficiency: With a 96% storage coefficient, these eco block modules maximize water retention capacity, ensuring efficient stormwater management while reducing environmental impact.
3. Easy Installation: The simple click-together design of Graf stormwater blocks streamlines the assembly process, saving time and labor costs. This user-friendly system adapts seamlessly to various project requirements.
4. Inspectable and Cleanable: Built-in inspection channels provide full visibility of your EcoBloc detention tank system, ensuring ongoing functionality and compliance. Additionally, high-pressure flushing allows for straightforward cleaning, extending the lifespan of the system.
5. Flexible Dimensions and Configurations: The EcoBloc’s modular design supports installation depths of up to 5.0 meters (16.4 feet), offering exceptional adaptability to different site conditions. Explore Graf EcoBloc dimensions to customize your project with ease.
Eco-Friendly and Cost-Effective
The GRAF EcoBloc Smart stormwater blocks are manufactured using recycled materials, aligning with sustainability goals. Its efficient design reduces excavation requirements compared to traditional systems, minimizing installation costs and environmental impact.
Applications of GRAF EcoBloc Smart:
-
Stormwater detention tanks for commercial and residential developments
-
Rainwater harvesting systems for sustainable water reuse
-
Infiltration systems to recharge groundwater
-
Flood mitigation projects for urban and rural areas
Why Partner with BARR Plastics for Graf Stormwater Solutions?
As a trusted distributor of Graf EcoBloc products in Canada, BARR Plastics offers expert guidance and tailored solutions for your stormwater management needs. From selecting the right EcoBloc dimensions to designing advanced Graf stormwater systems, our team ensures your project is a success.
Get Started with EcoBloc Today
Ready to revolutionize your stormwater management strategy? Discover the advantages of the GRAF EcoBloc Smart system and see how it can transform your next project. Contact BARR Plastics to learn more about our Graf stormwater management solutions, request quotes, and access expert advice.
