Cone Bottom Tank Stands

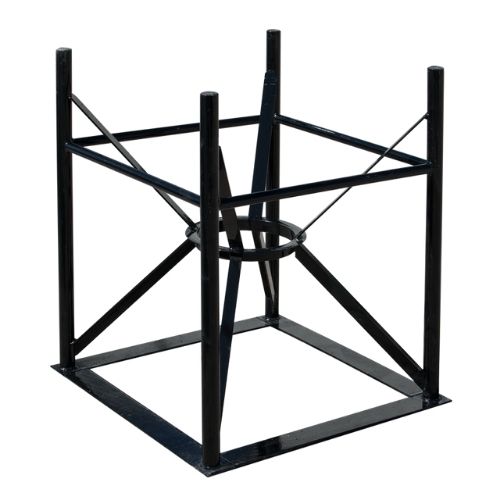

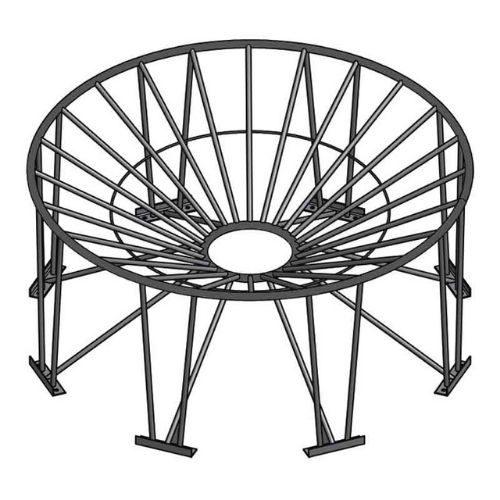

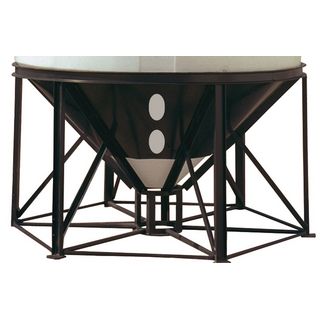

Choose from structural steel (painted) or polyethylene stand options, manufactured from BARR. All poly stands are available for some tank sizes - 175 through 3000 USG. Larger sizes offer a full dish for uniform bottom support. BARR can build fully custom stands or simply modify heights of standard stands to meet specific applications and plant configurations.
Other custom options are available such as attachments and fixtures for pumps, mixers, piping, etc. To view corresponding tanks, please see Cone Bottom Tanks and Cone Bottom - Flat Top Tanks.
Choose from structural steel (painted) or polyethylene stand options, manufactured from BARR. All poly stands are available for some tank sizes - 175 through 3000 USG. Larger sizes offer a...
Choose from structural steel (painted) or polyethylene stand options, manufactured from BARR. All poly stands are available for some tank sizes - 175 through 3000 USG. Larger sizes offer a full dish for uniform bottom support. BARR can build fully custom stands or simply modify heights of standard stands to meet specific applications and plant configurations.
Other custom options are available such as attachments and fixtures for pumps, mixers, piping, etc. To view corresponding tanks, please see Cone Bottom Tanks and Cone Bottom - Flat Top Tanks.
Couldn't load pickup availability
Height: " | Width: " | Length: "
| Part # | Diameter (in) | Height (in) | Â Description | Weight (lbs) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Cone Bottom Tank Stands | ||||||||||
| CB023-15ST | 23 | 24 | Steel Cone Bottom Stand for 55 USG - 15° Slope Tank #CB0055-23 | 37 | ||||||
| CB023-15ST | 23 | 24 |
Steel Cone Bottom Stand for 100 USG - 15° Slope Tank #CB0100-23 | 37 | ||||||
| CB036-15ST | 36 | 25 |
Steel Cone Bottom Stand for 145 USG - 45° Slope Tank #CB0145-36 | 84 | ||||||
| CB036-45ST | 36 | 36 |
Steel Cone Bottom Stand for 150 USG - 45° Slope Tank #CB0150-36 | 63 | ||||||
| 63932 | 36 | N/A |
Steel Cone Bottom Stand for 160 USG - 45° Slope Tanks #43845 / 43847 | N/A | ||||||
| CB036-15ST | 36 | 25 |
Steel Cone Bottom Stand for 200 USG - 15° Slope Tank #CB0200-36 | 84 | ||||||
| CB042-45ST | 42 | 41 |
Steel Cone Bottom Stand for 200 USG - 45° Slope Tank #CB0200-42 | 82 | ||||||
| CB036-15ST | 36 | 25 |
Steel Cone Bottom Stand for 250 USG - 15° Slope Tank #CB0250-36 | 84 | ||||||
| 63933 | 48 | N/A |
Steel Cone Bottom Stand for 300 USG - 45° Slope Tank #43848 | N/A | ||||||
| CB042-45ST | 42 | 41 |
Steel Cone Bottom Stand for 300 USG - 45° Slope Tank #CB0300-42 | 82 | ||||||
| CB036-15ST | 36 | 25 |
Steel Cone Bottom Stand for 325 USG - 15° Slope Tank #CB0325-36 | 84 | ||||||
| CB052-45ST | 52 | 55 |
Steel Cone Bottom Stand for 345 USG - 45° Slope Tanks #CB0345-52 | 174 | ||||||
| CB042-45ST | 42 | 41 |
Steel Cone Bottom Stand for 350 USG - 45° Slope Tank #CB0350-42 | 82 | ||||||
| 63933 | 48 | N/A |
Steel Cone Bottom Stand for 500 USG - 45° Slope Tank #43850 | N/A | ||||||
| CB052-45ST | 52 | 54 |
Steel Cone Bottom Stand for 500 USG - 45° Slope Tank #CB0500-52 | 174 | ||||||
| CB086-15ST | 86 | 23 |
Steel Cone Bottom Stand for 800 USG - 15° Slope Tank #CB0800-86 | 360 | ||||||
| 63934 | 72 | N/A |
Steel Cone Bottom Stand for 1000 USG - 45° Slope Tank #43852 | N/A | ||||||
| CB64-45ST | 64 | 61 |
Steel Cone Bottom Stand for 1000 USG - 45° Slope Tank #CB1000-64 | 320 | ||||||
| CB090-15ST | 90 | 21 |
Steel Cone Bottom Stand for 1200 USG - 15° Slope Tank #CB1200-90 | 380 | ||||||
| CB064-45ST | 64 | 61 |
Steel Cone Bottom Stand for 1490 USG - 45° Slope Tank #CB1490-64 | 320 | ||||||
| 63934 | 72 | N/A |
Steel Cone Bottom Stand for 1500 USG - 45° Slope Tank #43854 | N/A | ||||||
| CB090-30ST | 90 | 40 |
Steel Cone Bottom Stand for 1600 USG - 30° Slope Tank #CB1600-90 | 640 | ||||||
| CB086-15ST | 86 | 23 |
Steel Cone Bottom Stand for 1700 USG - 15° Slope Tank #CB1700-86 | 360 | ||||||
| 60059 | 96 | 36 |
Steel Cone Bottom Stand for 2500 USG - 30° Slope Tanks #40066 / 40129 | 525 | ||||||
| CB090-15ST | 90 | 23 |
Steel Cone Bottom Stand for 2500 USG - 15° Slope Tank #CB2500-90 | 380 | ||||||
| CB090-30ST | 90 | 40 |
Steel Cone Bottom Stand for 2600 USG - 30° Slope Tank #CB2600-90 | 640 | ||||||
| CB086-15ST | 86 | 23 |
Steel Cone Bottom Stand for 2600 USG - 15° Slope Tank #CB2600-86 | 360 | ||||||
| 60059 | 96 | 36 |
Steel Cone Bottom Stand for 3000 USG - 30° Slope Tanks #40170 / 40172 | 525 | ||||||
| CB090-15ST | 90 | 24 |
Steel Cone Bottom Stand for 3000 USG - 15° Slope Tank #CB3000-90 | 380 | ||||||
| 63675 | 102 | 21 |
Steel Cone Bottom Stand for 4500 USG - 10° Slope Tanks #43058 / 43060 | N/A | ||||||
| CB102-15ST | 102 | 25 |
Steel Cone Bottom Stand for 4600 USG - 15° Slope Tank #CB4600-102 | 640 | ||||||
| CB102-15ST | 102 | 25 |
Steel Cone Bottom Stand for 4900 USG - 15° Slope Tank #CB4900-102 | 640 | ||||||
| 60358 | 119 | 45 |
Steel Cone Bottom Stand for 5500 USG - 30° Slope Tanks #40549 / 40316 | 1150 | ||||||
| 62473 | 141 | 49 |
Steel Cone Bottom Stand for 6000 USG - 15° Slope Tanks #40931 / 40933 | 706 | ||||||
| CB122-15ST | 122 | 25 |
Steel Cone Bottom Stand for 6900 USG - 15° Slope Tanks #CB6900-122 | 1020 | ||||||
| 61860 | 141 | 49 |
Steel Cone Bottom Stand for 7500 USG - 30° Slope Tanks #40551 / 40409 | 1450 | ||||||
| CB122-15ST | 122 | 25 |
Steel Cone Bottom Stand for 8250 USG - 15° Slope Tanks #CB8250-122 | 1020 | ||||||
| Poly Cone Bottom Tank Stands | ||||||||||
| 60119 | 43" | 31.5 |
Poly Cone Bottom Stand for 175 USG - 30° Slope Tank #41303 | 44 | ||||||
| 40574 | 49" | 32 |
Poly Cone Bottom Stand for 300 USG - 30° Slope Tank #62345 | 85 | ||||||
| 60119 | 43" | 31.5 |
Poly Cone Bottom Stand for 310 USG - 30° Slope Tank #41306 | 44 | ||||||
| 40574 | 49" | 32 |
Poly Cone Bottom Stand for 500 USG - 30° Slope Tank #40287 | 85 | ||||||
| 40358 | 73" | N/A |
Poly Cone Bottom Stand for 750 USG - 20° Slope Tank #40811 | 150 | ||||||
| 40358 | 73" | N/A |
Poly Cone Bottom Stand for 1050 USG - 20° Slope Tank #40356 | 150 | ||||||
| 40411 | 89" | N/A |
Poly Cone Bottom Stand for 1600 USG - 30° Slope Tanks #40817 / 40819 | 285 | ||||||
| 40553 | 96" | 47 |
Poly Cone Bottom Stand for 2500 USG - 30° Slope Tanks #40066 / 40129 | 495 | ||||||
| 40553 | 96" | 47 |
Poly Cone Bottom Stand for 3000 USG - 30° Slope Tanks #40170 / 40172 | 495 | ||||||
