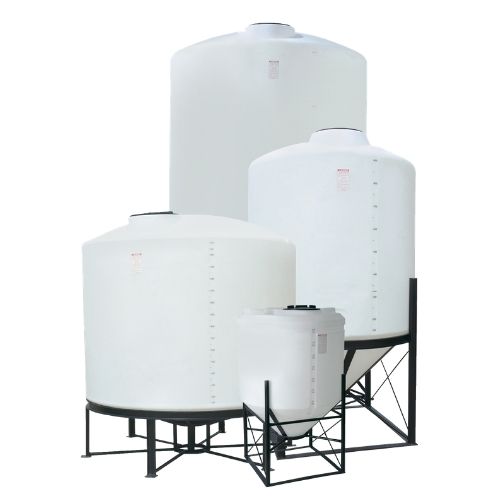

• Cone Bottom Tanks at BARR Plastics

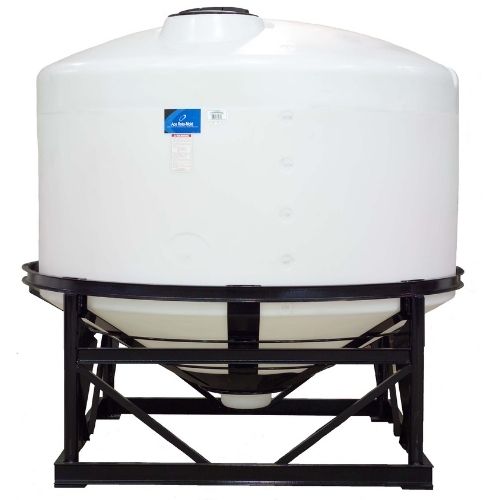

  • Single cone bottom tank with stand

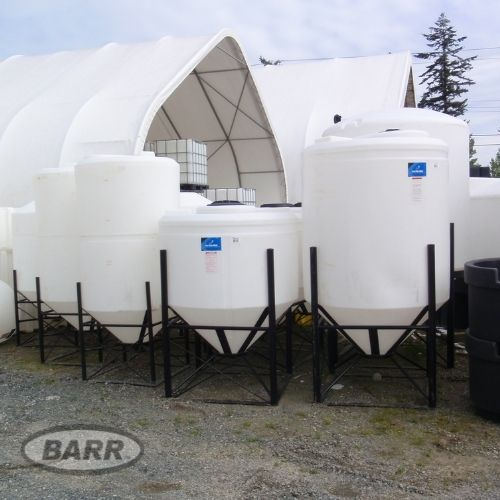

  • Group of cone bottom tanks with stands at BARR Plastics in Abbotsford, BC

Dome Top Cone Bottom Tanks

The conical bottoms of these tanks allow for complete drainage and ease of clean out, making them ideal for many mixing and manufacturing applications.

The cone bottom tanks are molded from high density polyethylene with UV inhibitors, making them impact and chemical resistant and durable for long-term outdoor use. Tank walls are translucent for easy level viewing. These tanks are certified for potable water use, please contact BARR for specifics.

All tank heights are listed from floor to top of tank when the tank is sitting in its stand - See tank drawing for tank only heights. To view corresponding tank stands please see - Cone Bottom Tank Stands.

BARR can customize these vessels to provide a complete liquid handling system - including additions such as mounting fixtures and equipment for agitation, mixing and aeration, internal and external piping, custom sized and configured steel stands and a variety of standard or specialized Valves, Fittings, Pumps, Hose & Hose Clamps.

The conical bottoms of these tanks allow for complete drainage and ease of clean out, making them ideal for many mixing and manufacturing applications. The cone bottom tanks are molded...
Read More

The conical bottoms of these tanks allow for complete drainage and ease of clean out, making them ideal for many mixing and manufacturing applications.

The cone bottom tanks are molded from high density polyethylene with UV inhibitors, making them impact and chemical resistant and durable for long-term outdoor use. Tank walls are translucent for easy level viewing. These tanks are certified for potable water use, please contact BARR for specifics.

All tank heights are listed from floor to top of tank when the tank is sitting in its stand - See tank drawing for tank only heights. To view corresponding tank stands please see - Cone Bottom Tank Stands.

BARR can customize these vessels to provide a complete liquid handling system - including additions such as mounting fixtures and equipment for agitation, mixing and aeration, internal and external piping, custom sized and configured steel stands and a variety of standard or specialized Valves, Fittings, Pumps, Hose & Hose Clamps.

Height: " | Width: " | Length: "

Click on Part # to view tank drawing
Capacity Part # / Drawing Dia./ Width (in) Slope (°

)		 Overall Height With Stand (in) Lid/Fill Opening (in) Largest Bottom Bulkhead Fitting (in) Weight (lbs) Compatible Stand
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
160 133 606 43845 N/A 36 45 52 16 2 N/A 63932
160  133 606 43847 Full Drain N/A 36 45 52 16 2 FNPT N/A 63932
175 146 662 60113 * N/A 43 30 49 / 9+ 16 2 98 Included
175 146 662 41303 N/A 43 30 40 16 2 54 60119
200 167 757 N/A CB0200-42 42 N/A 65 12 2 75 CB042-45ST
300 250 1136 43848 N/A 48 45 56 16 2 N/A 63933
300 250 1136 62343 * N/A 49 30 61 / 9+ 16 2 159 Included
300 250 1136 62345 N/A 49 30 52 16 2 74 40574
300 250 1136 N/A CB0300-42 42 45 79 16 2 100 CB042-45ST
310 258 1173 62441 * N/A 43 30 72 / 9+ 8 2 121 Included
310 258 1173 41306 N/A 43 30 63 8 2 77 60119
500 416 1893 43850 N/A 48 45 85 16 2 N/A 63933
500 416 1893 40289* N/A 49 30 87  / 9+ 16 2 209 Included
500 416 1893 40287 N/A 49 30 78 16 2 124 40574
750 625 2839 40809 * N/A 73 20 64 / 11+ 16 2 319 Included
750 625 2839 40811 N/A 72 20 56 16 2 169 40358
800 666 3028 CB0800-86 N/A 86 15 58 16 2 182 CB086-15ST
1000 833 3785 CB1000-64 N/A 64 45 112 16 2 250 CB064-45ST
1000 833 3785 N/A CB1000-90 90 15 64 16 2 212 CB090-15ST
1005 836 3804 CB1005-64 N/A 64 15 105 16 2 222 CB064-15ST
1050 874 3975 40359 * N/A 73 20 86 / 11+ 16 2 354 Included
1050 874 3975 40356 N/A 72 20 75 16 2 204 40358
1200 999 4542 CB1200-90 N/A 90 15 74 16 2 240 CB090-15ST
1300 1082 4921 CB1300-90 N/A 90 15 75 16 2 262 CB090-15ST
1490 1241 5640 CB1490-64 N/A 64 45 164 16 2 340 CB064-45ST
1500 1249 5678 43854 N/A 72 45 112 16 2 N/A 63934
1500 1249 5678 CB1500-64 N/A 64 15 141 16 2 332 CB064-15ST
1500 1249 5678 CB1500-96 N/A 96 30 92 16 2 252 CB096-30ST
1600 1332 6057 40813 * 40815 * 89 30 96 / 11+ 16 2 524 / 559 Included
1600 1332 6057 40817 40819 88 30 84 16 2 239 / 274 40411
1600 1332 6057 CB1600-90 N/A 90 30 93 16 2 284 CB090-30ST
1700 1416 6435 CB1700-86 N/A 86 15 96 16 2 284 CB086-15ST
2000 1665 7570 CB2000-96 N/A 96 30 108 16 2 292 CB096-30ST
2495 2077 9444 CB2495-90 N/A 91 30 129 16 2 487 CB090-30ST
2500 2082 9464 40672 * 40674 * 96 30 116 / 10+ 16 2 889 / 949 Included
2500 2082 9464 40066 40129 95 30 105 16 2 394 / 454 40553
60059 (Steel)
2500 2082 9464 CB2500-90 N/A 90 15 122 16 2 435 CB090-15ST
2600 2165 9842 CB2600-86 N/A 86 45 158 16 2 500 CB086-15ST
2600 2165 9842 CB2600-90 N/A 90 30 132 16 2 500 CB090-30ST
3000 2498 11356 40797 * 40799 * 96 30 134 / 10+ 16 2 939 / 1004 Included
3000 2498 11356 40170 40172 95 30 123 16 2 444 / 509 40553
60059 (Steel)
3000 2498 11356 CB3000-90 N/A 90 15 138 16 2 550 CB090-15ST
3000 2498 11356 CB3000-96 N/A 96 30 137 16 2 552 CB096-30ST
4200 3497 15898 CB4200-122 N/A 122 15 126 16 3 1102 CB122-15ST
4500 3747 17034 43058 43060 102 10 145 16 3 / 2 1105 63675
4600 3830 17413 CB4600-102 ^ N/A 102 15 166 16 2 1200 CB102-15ST
4900 4080 18549 CB4900-102 ^ N/A 102 15 170 16 2 1300 CB102-15ST
5500 4580 20820 40549 40316 118 30 148 16 3 / 2 1180 / 1353 60358
6000 4996 22712 CB6000-122 N/A 122 15 162 16 3 1602 CB122-15ST
6000 4966 22712 40931 40933 102 15 195 16 3 / 2 1330 / 1480 62473
6900 5745 26119 CB6900-122 ^ N/A 122 15 178 16 3 1700 CB122-15ST
7500 6245 28391 40551 40409 141 30 149 16 3 / 2 1380 / 1555 61860
8250 6870 31230 CB8250-122 ^ N/A 122 15 206 16 3 2100 CB122-15ST
* = Includes Polyethylene Stand
+ = Distance from bottom of cone to ground.
^ = Heavy Duty Fittings
