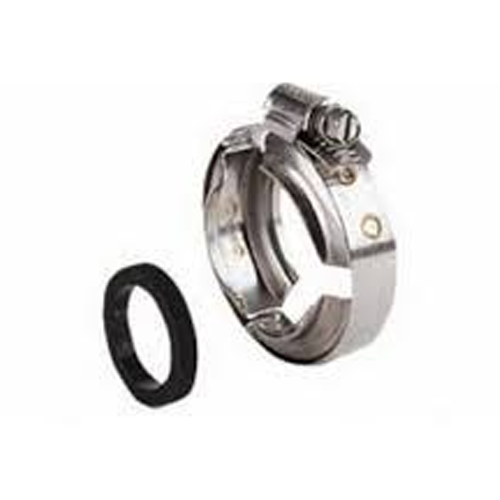

Stainless Steel Flange Clamp & Gasket Assembly
BARR's stainless steel Flange Clamp and Gasket provides quick and easy assembly with no pipe or sealants necessary. The assembly comes with positive seals and easy on/off hose connections and any damaged parts are easily replaced.
With a 360 degree orientation, these fittings are designed for compact arrangments such as in spray systems. The valves and fittings are manufactured from glass-reinforced polypropylene for strength and durability so they will never rust or corrode.
Their recommended operating pressure for fittings is as follows: 120 PSI at 0°F, 150 PSI at 70°F and 90 PSI at 150°F.
BARR's stainless steel Flange Clamp and Gasket provides quick and easy assembly with no pipe or sealants necessary. The assembly comes with positive seals and easy on/off hose connections and...
BARR's stainless steel Flange Clamp and Gasket provides quick and easy assembly with no pipe or sealants necessary. The assembly comes with positive seals and easy on/off hose connections and any damaged parts are easily replaced.
With a 360 degree orientation, these fittings are designed for compact arrangments such as in spray systems. The valves and fittings are manufactured from glass-reinforced polypropylene for strength and durability so they will never rust or corrode.
Their recommended operating pressure for fittings is as follows: 120 PSI at 0°F, 150 PSI at 70°F and 90 PSI at 150°F.
Couldn't load pickup availability
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 62932 | 1 | 10 | Stainless Steel Worm Screw Clamp for Flange Fittings |
| 62935 | 1 | 10 | EPDM Flange Gasket |
| M100GV | 1 | 10 | Viton(FPM) Flange Gasket |
| FC200 | 1-1/2 | 10 | Stainless Steel Worm Screw Clamp for Flange Fittings (200 Series Ftgs.) |
| 150GV | 1-1/2 | 10 | Viton(FPM) Flange Gasket |
| 62933 | 2 | 10 | Stainless Steel Worm Screw Clamp for Flange Fittings (Full Port or 220 Series Ftgs.) |
| 61574 | 2 | 10 | EPDM Flange Gasket (Full Port - 220 Series) |
| 200GV | 2 | 10 | Viton(FPM) Flange Gasket |
| 300GV | 3 | 10 | Viton(FPM) Flange Gasket |
| 61575 | 3 | 10 | EPDM Flange Gasket |
| 62934 | 3 | 10 | Stainless Steel Worm Screw Clamp for Flange Fittings |
