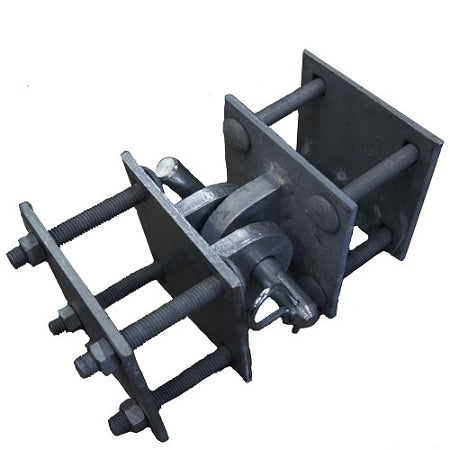

Dock Connector Hinge Kits
Use to connect your existing dock sections together on the edges when your corners aren't able to be used as connection points.
Our standard hot-dipped, galvanized steel dock hardware is manufactured from 1/4 thick steel while our heavy duty hardware is manufactured from 3/8 thick steel.
Using the right materials the first time will ensure you have a dock that will be able to ride out those high winds and choppy waters. All dock hardware is made from 0.5 diameter carriage bolts and can be used with 2 -4 thick lumber. Need some help knowing where everything goes? Kits and plans are available--and our experienced staff can help you answer any questions.
Use to connect your existing dock sections together on the edges when your corners aren't able to be used as connection points.Our standard hot-dipped, galvanized steel dock hardware is manufactured...
Use to connect your existing dock sections together on the edges when your corners aren't able to be used as connection points.
Our standard hot-dipped, galvanized steel dock hardware is manufactured from 1/4 thick steel while our heavy duty hardware is manufactured from 3/8 thick steel.
Using the right materials the first time will ensure you have a dock that will be able to ride out those high winds and choppy waters. All dock hardware is made from 0.5 diameter carriage bolts and can be used with 2 -4 thick lumber. Need some help knowing where everything goes? Kits and plans are available--and our experienced staff can help you answer any questions.
Couldn't load pickup availability
Height: " | Width: " | Length: "
Click on Part # to view drawing
| Part # / Model | Size (in) | Description | Weight |
|---|---|---|---|
| Standard Duty | |||
| H-SM | 5 x 5 | Single T Male Bracket | 2.5 |
| H-SF | 5 x 5 | Single T Female Bracket | 3.5 |
| H-B | 5 x 5 | Backup Plate | 1.5 |
| F-3435B | 3/4 x 3-1/2L | Connector Pin - 0.5 lbs. | 0.5 |
| Heavy Duty | |||
| H-SM-HD | 5.5 x 8 x 2-9/16 | Heavy Duty Single T Male Bracket | 6.0 |
| H-SF-HD | 5.5 x 8 x 2-9/16 | Heavy Duty Single T Female Bracket | 7.5 |
| H-B-HD | 5.5 x 8 x 3/8 | Heavy Duty Backup Plate | 4.5 |
| F-3435B | 3/4 x 3-1/2L | Connector Pin | 0.5 |
