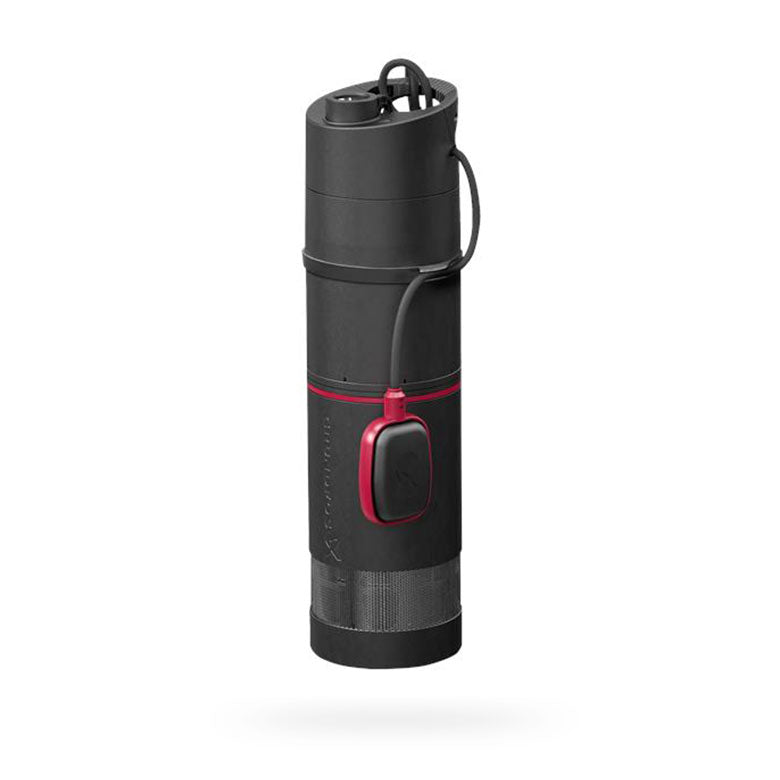

Submersible Pressure Pump SBA3-45 A by Grundfos | 97896333

SBA3-45 AW 1x115V 60Hz 45ft NEMA NPT

Shop online at BARR Plastics. 92713157

These pumps are an all-in-one submersible booster designed for pumping clean water for domestic use. The SBA is built on the proven SB platform and comes with an integrated control unit. This eliminates the need for an external pump controller in the house. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.

The pump features a float switch, which promises the user a convenient experience with automatic start/stop operation of the pump and provides dry running protection. The single-phase model is effectively protected against any accidental overload by built-in thermal protection.

The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.

Specs:

• Rated Flow: 26 GPM
• PSI/Head: 64 / 148' of head pressure
• Motor Type & HP: Electric, 1 HP
• Inlet/Outlet Size: 1"
• Electrical Rated Voltage: 1x110-120 V
• Pump Housing: Composite
• Solid Handling: NO
• Impellers: 3 (Composite)
• Power Cord: 49 ft
