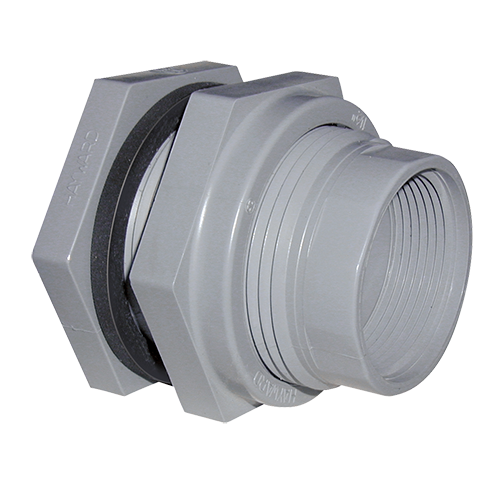

PVC SCH 80 Bulkhead Fittings
The all-plastic construction on these bulkhead fittings means that you never have to deal with rust or corrosion of components. The fittings have a proven, rugged design, with a hexagonal body and EPDM or FPM (Viton) gasket seals. They are rated to 150 PSI.
Ready flanges are available to quickly and easily convert the bulkhead fitting to ANSI flange connection. PVC fittings come in Socket x Thread or Thread x Thread connections and CPVC fittings come in Socket x Thread connections.
The all-plastic construction on these bulkhead fittings means that you never have to deal with rust or corrosion of components. The fittings have a proven, rugged design, with a hexagonal...
The all-plastic construction on these bulkhead fittings means that you never have to deal with rust or corrosion of components. The fittings have a proven, rugged design, with a hexagonal body and EPDM or FPM (Viton) gasket seals. They are rated to 150 PSI.
Ready flanges are available to quickly and easily convert the bulkhead fitting to ANSI flange connection. PVC fittings come in Socket x Thread or Thread x Thread connections and CPVC fittings come in Socket x Thread connections.
Couldn't load pickup availability
| Part # | BH Ftg. Size | Hole Saw Size | Box/Case Qty. | Description |
|---|---|---|---|---|
| BFA1060SES | 6 | 8" | Â 1 | SxS with EPDM Gasket |
| BFA1060SFS | 6 | 8" | Â 1 | SxS with Viton Gasket |
| BFA1060TES | 6 | 8" | Â 1 | TxT with EPDM Gasket |
| BFA1060TFS | 6 | 8" | Â 1 | TxT with Viton Gasket |
| BFAS1040SES | 4 | 5-3/4" | Â 1 | SxS with EPDM Gasket |
| BFAS1040SFS | 4 | 5-3/4" | Â 1 | SxS with Viton Gasket |
| BFAS1040TES | 4 | 5-3/4" | Â 1 | TxT with EPDM Gasket |
| BFAS1040TFS | 4 | 5-3/4" | Â 1 | TxT with Viton Gasket |
| BFAS1030SES | 3 | 4-1/2" | Â 1 | SxS with EPDM Gasket |
| BFAS1030SFS | 3 | 4-1/2" | Â 1 | SxS with Viton Gasket |
| BFAS1030TES | 3 | 4-1/2" | Â 1 | TxT wtith EPDM Gasket |
| BFAS1030TFS | 3 | 4-1/2" | Â 1 | TxT with Viton Gasket |
| BFAS1020SES | 2 | 3-1/4" | Â 10 | SxS with EPDM Gasket |
| BFAS1020SFS | 2 | 3-1/4" | Â 10 | SxS with Viton Gasket |
| BFAS1020TES | 2 | 3-1/4" | Â 10 | TxT with EPDM Gasket |
| BFAS1020TFS | 2 | 3-1/4" | Â 10 | TxT with Viton Gasket |
| BFAS1015SES | 1-1/2 | 2-3/8" | Â 10 | SxS with EPDM Gasket |
| BFAS1015SFS | 1-1/2 | 2-3/8" | Â 10 | SxS w/ithViton Gasket |
| BFAS1015TES | 1-1/2 | 2-3/8" | Â 10 | TxT with EPDM Gasket |
| BFAS1015TFS | 1-1/2 | 2-3/8" | Â 10 | TxT with Viton Gasket |
| BFAS1010SES | 1 | 1-7/8" | Â 10 | SxS with EPDM Gasket |
| BFAS1010SFS | 1 | 1-7/8" | Â 10 | SxS with Viton Gasket |
| BFAS1010TESÂ | 1 | 1-7/8" | Â 10 | TxT with EPDM Gasket |
| BFAS1010TFS | 1 | 1-7/8" | Â 10 | TxT with Viton Gasket |
