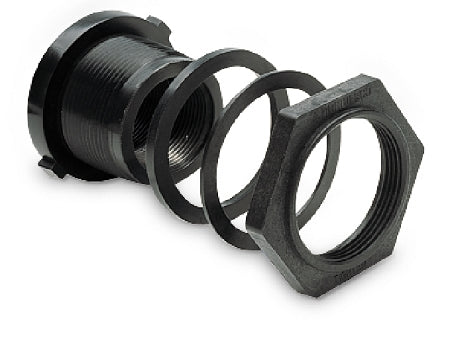

Polypropylene Bulkhead Fittings
All of BARR's bulkhead fittings are double threaded and constructed of polypropylene for long-lasting durability. They can be welded to your tank wall by BARR Plastics or bought separately for a variety of applications. Viton gaskets are available when EPDM may not be suitable for your application. Inquire today!
PARTS TABLE
Click on Part # to view drawing| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 62798 | 3/4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF075 | 3/4 | Â 1 | Bulkhead fitting |
| 60401 | 3/4 | 1 | Bulkhead fitting with EPDM gasket |
| 62834 | 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| 60360 | 1/2 - 3/4 | 1 | Viton gasket for 60401 & 62834 |
| 60402 | 1/2 - 3/4 | 1 | EPDM gasket for 60401 & 62834 |
| 150G | 1/2 - 3/4 | Â 100 | EPDM gasket for TF075 |
| 150GV | 1/2 - 3/4 | Â 50 | Viton gasket for TF075 |
| 60427 | 1 | 1 | Bulkhead fitting with EPDM gasket |
| TF100 | 1 | 1 | Heavy duty bulkhead fitting |
| 60403 | 1 1/4 | 1 | Bulkhead fitting with EPDM gasket |
| 200G | 1 - 1 1/4 | 50 | EPDM gasket for TF100 |
| 200GV | 1 - 1 1/4 | 50 | Viton gasket for TF100 |
| 60404 | 1 - 1 1/4 | Â 1 | EPDM gasket for 60403 & 60427 |
| 60361 | 1 - 1 1/4 | Â 1 | Viton gasket for 63065, 60403 & 60427 |
| 62398 | 1 1/4 | Â 1 | Anti-vortex adapter |
| 60124 | 1 1/2 | Â 1 | Bulkhead fitting with EPDM gasket |
| TF150 | 1 1/2 | 1 | Heavy duty bulkhead fitting |
| 60405 | 2 | Â 1 | Bulkhead fitting with EPDM gasket |
| TF220 | 2 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF220V | 2 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60406 | 1 1/2 - 2 | Â 1 | EPDM gasket for 60405 & 60124 |
| 60523 | 1 1/2 - 2 | Â 1 | Viton gasket for 60405 & 60124 |
| 300G | 1 1/2 - 2 | 1 | EPDM gasket for TF150 |
| 300GV | 1 1/2 - 2 | 1 | Viton gasket for TF150 & TF200 |
| 62399 | 2 | Â 1 | Anti-vortex adapter |
| 63316 | 2 | Â 1 | MPT vent cap/anti-vortex |
| 63266 | 2 | Â 1 | MPT vent cap w with poly screen |
| 63262 | 2 x 12 | Â 1 | Polypropylene siphon tube |
| 60335 | 2 | Â 1 | Polypropylene siphon tube |
| 62299 | 3 | Â 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300V | 3 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60331 | 3 | Â 1 | EPDM gasket for 62299, 60339 & 63668 |
| 60351 | 3 | Â 1 | Viton gasket for 62299 & 63668 |
| 63263 | 3 | Â 1 | Polypropylene siphon tube |
| 60327 | 3 |  1 | Polypropylene siphon tube |
| 62171 | 4 | Â 1 | Heavy duty bulkhead fitting |
| TF400 | 4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF400V | 4 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 62785 | 4 | Â 1 | EPDM gasket for 62171 |
| 62786 | 4 | Â 1 | Viton gasket for 62171 |
| 62714 | 4 | Â 1 | Polypropylene siphon tube |
