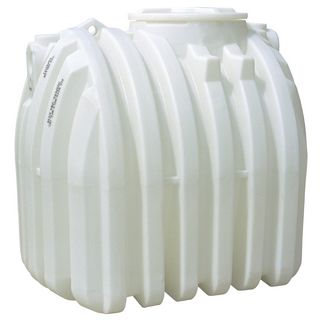

Potable Water Cisterns
Cisterns are made from FDA approved HDPE resin for belowground storage of potable water. They're ideal for instances when drinking water must be hauled in or if a well just does not meet consumption needs.
The one-piece, seamless and watertight tanks will not rust or corrode and require no additional coatings. They're easy to transport, handle and install with no heavy equipment required.
Risers, pumps, filters, level indicators and various fitting and accessories are available from BARR.
Cisterns are made from FDA approved HDPE resin for belowground storage of potable water. They're ideal for instances when drinking water must be hauled in or if a well just...
Cisterns are made from FDA approved HDPE resin for belowground storage of potable water. They're ideal for instances when drinking water must be hauled in or if a well just does not meet consumption needs.
The one-piece, seamless and watertight tanks will not rust or corrode and require no additional coatings. They're easy to transport, handle and install with no heavy equipment required.
Risers, pumps, filters, level indicators and various fitting and accessories are available from BARR.
Couldn't load pickup availability
| Capacity | Part # / Drawing | Dia./ Width (in) |
Length (in) |
Height (in) |
Lid/Fill Opening (in) |
Fitting (in) |
Weight (lbs) | Availability | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | |||||||
| 325 | 271 | 1230 | 41321 | N/A | 54 | N/A | 51 | 1-20 | N/A | 129 | |
| 550 | 458 | 2082 | 40856 | N/A | 64 | N/A | 64 | 1-20 | N/A | 199 | |
| 600 | 500 | 2271 | 41328 | N/A | 51 | 101 | 42 | 1-20 | N/A | 203 | |
| 850 | 708 | 3218 | AST-0850-1W | N/A | 60 | 70 | 60 | N/A | N/A | 259 | |
| 1200 | 1000 | 4542 | 43073 | N/A | 60 | 102 | 62 | 2-20 | N/A | 372 | Discontinued |
| 1200 | 999 | 4542 | 41329 | N/A | 60 | 102 | 58 | 2-20 | N/A | 372 | |
| 1400 | 1166 | 5300 | 41893 | N/A | 55 | 116 | 66 | 2-20 | N/A | 432 | |
| 1500 | 1250 | 5680 | N/A | 42654 (1CH) | 55 | 133 | 70 | 2-20 | N/A | 588 | E |
| 1680 | 1400 | 6364 | 42654 | N/A | 55 | 133 | 70 | 2-20 | N/A | Discontinued | |
| 1700 | 1416 | 6435 | 41330 | N/A | 55 | 133 | 66 | 2-20 | N/A | 552 | |
| 2520 | 2100 | 9545 | 44080 | N/A | 99 | 159 | 51 | 1-20 | N/A | E | |
| Part # | Size (in) | Description | Weight (lbs) |
|---|---|---|---|
| 63514 | 6 H x 20 D | Manhole Extension | 9 |
| 62397 | 15 H x 20 D | Manhole Extension | 13 |
| 63984 | 24 H x 20 D | Manhole Extension | 15 |
| 62395 | 12 D x 25 H riser pipe | Lid & Riser Combo | 13 |
| 62408 | 20 D | Septic/Cistern tank lid with gasket | 3 |
| 62406 | #14 x 1-1/4 | SS self tapping screw - 4 needed for #62408 lid | <1 |
| 62942 | 20 D | Ethafoam gasket for 20" septic lid #62408 | <1 |
| 63151 | N/A | Septic Adapter SDR35 with nut & EPDM Gasket | 3 |
| 63152 | N/A | Septic Adater SCH40 with nut & EPDM gasket | 4 |
