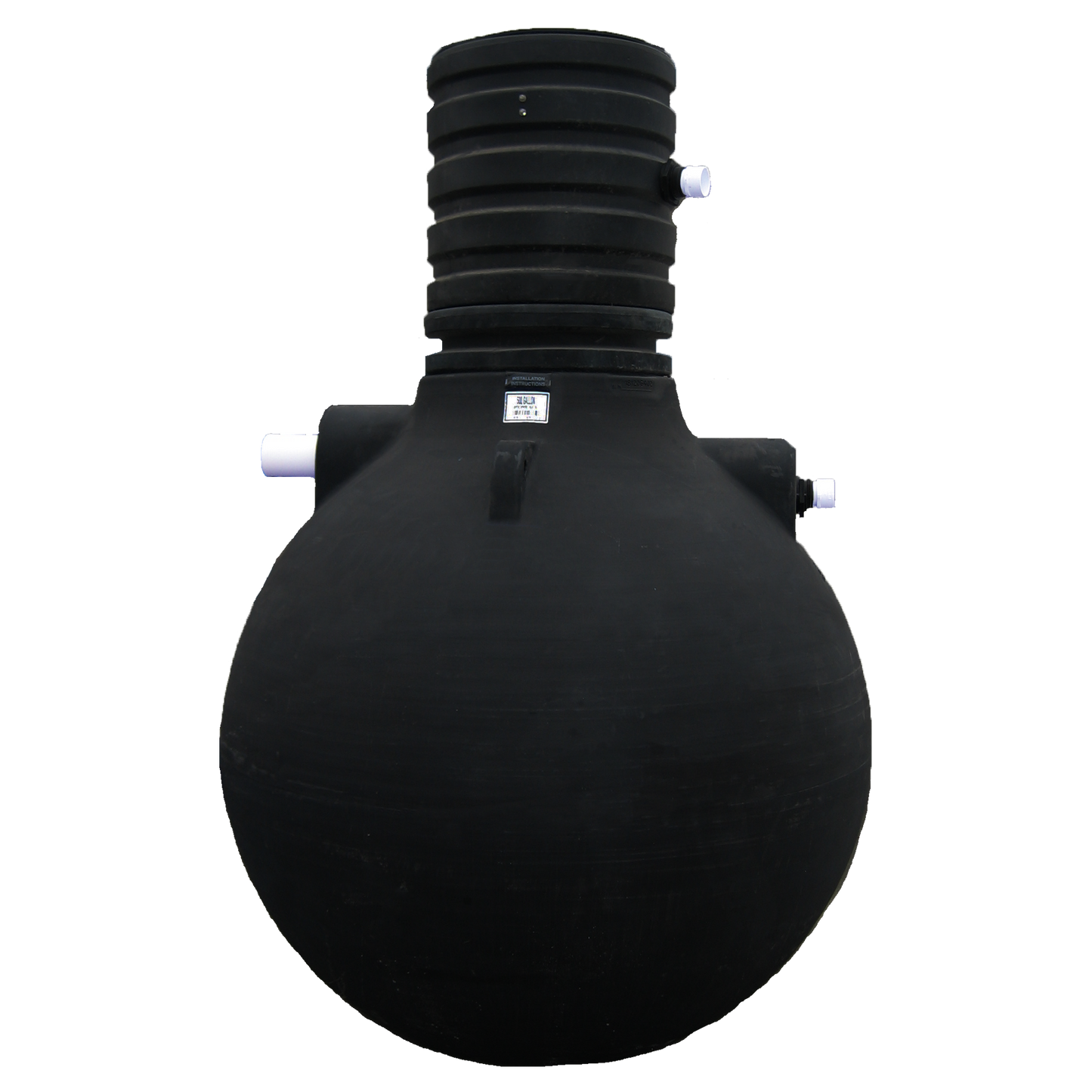

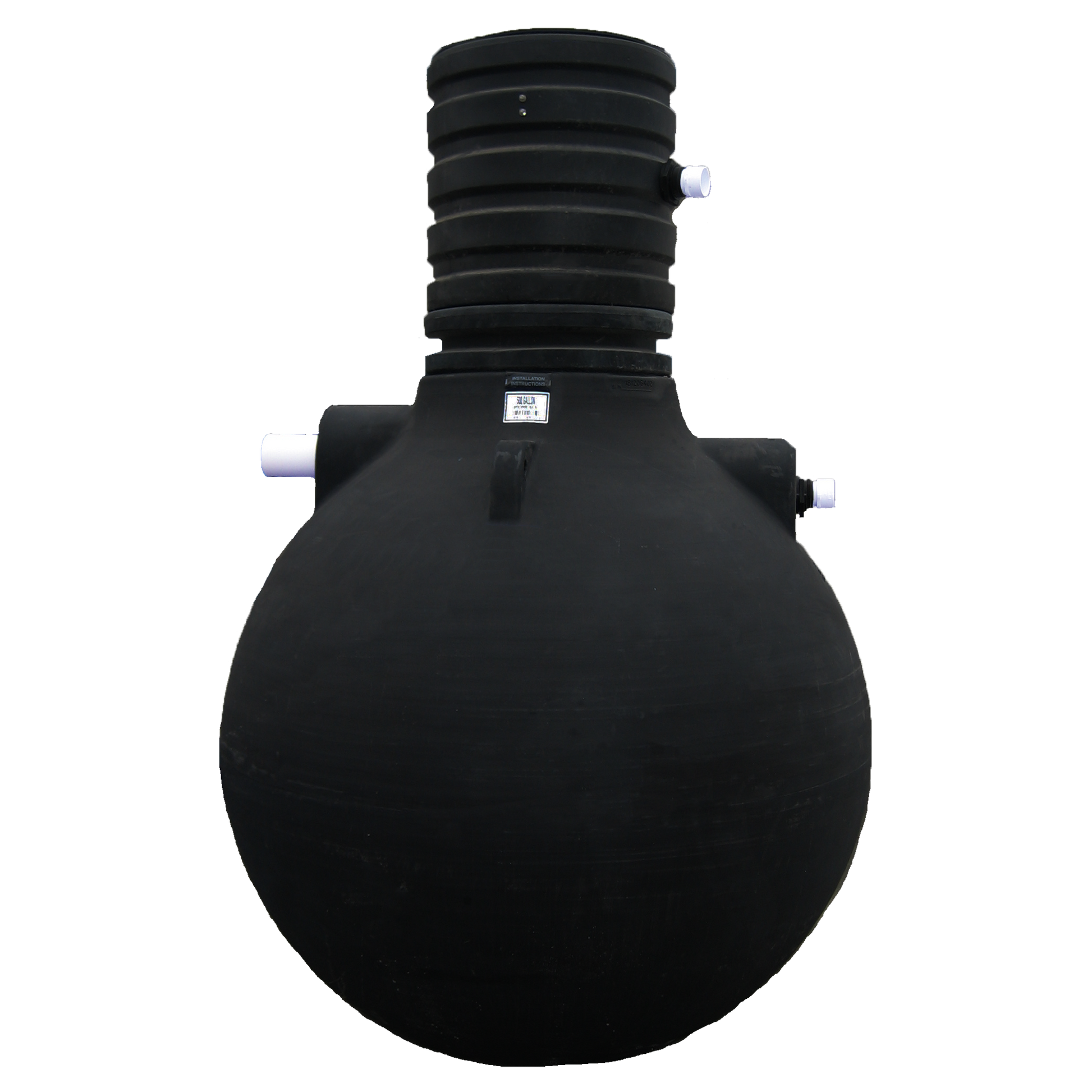

Poly Pump Chambers
Pump chambers house a submersible pump(s) for situations where pressurized discharge of the effluent is required. They are designed for intermediate, mid-capacity collection of raw sewage, drainage water and other wastewater effluents.
BARR can prefit and pre-assemble your pump chamber with pumps, fittings, piping, valves, float switch brackets and float switches, risers and other fixtures as required.
If the pump chamber is installed in an area where high water ever exists, they should be anchored. It is suitable for 3 of burial depth (above top surface of tank).
All poly septic and sewage holding tanks (except the standard yellow septic tanks) may also be used for larger capacity pump chambers, up to 2,500 USG.
Pump chambers house a submersible pump(s) for situations where pressurized discharge of the effluent is required. They are designed for intermediate, mid-capacity collection of raw sewage, drainage water and other...
Pump chambers house a submersible pump(s) for situations where pressurized discharge of the effluent is required. They are designed for intermediate, mid-capacity collection of raw sewage, drainage water and other wastewater effluents.
BARR can prefit and pre-assemble your pump chamber with pumps, fittings, piping, valves, float switch brackets and float switches, risers and other fixtures as required.
If the pump chamber is installed in an area where high water ever exists, they should be anchored. It is suitable for 3 of burial depth (above top surface of tank).
All poly septic and sewage holding tanks (except the standard yellow septic tanks) may also be used for larger capacity pump chambers, up to 2,500 USG.
Couldn't load pickup availability
| Capacity | Part # / Drawing | Dia./ Width (in) | Length (in) | Height (in) | Lid/Fill Opening (in) | Fitting (in) | Weight (lbs) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | ||||||
| 200 | 165 | 757 | 44950 | N/A | 47 | N/A | 56 | N/A | N/A | 80 |
| 300 | 250 | 1136 | 41319 / 44946 | N/A | 54 | N/A | 51 | N/A | N/A | 129 |
| 500 | 417 | 1893 | 40785 | N/A | 64 | N/A | 64 | N/A | N/A | 179 |
| 850 | 625 | 2839 | AST-0850-1W | N/A | 60 | 70 | 60 | N/A | N/A | 259 |
