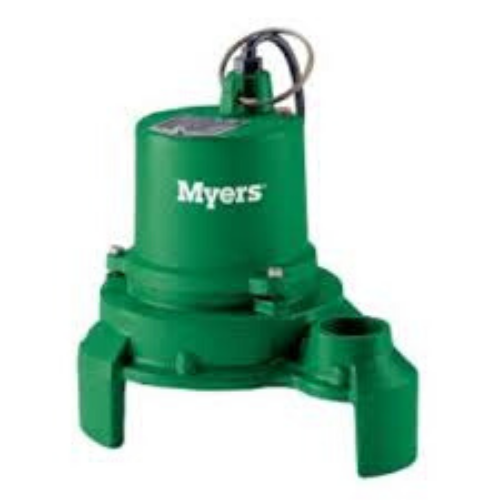

Myers ME3 Series Effluent & Drainage Pumps
The overload protected, shaded pole motor eliminates starting switches and relays which are prone to fail. It is also oil-filled for maximum heat dissipation and continuous bearing lubrication. The heavy cast iron motor housing and volute case dissipate heat, allowing the motor to run cooler for extended life.
The field-tested, wide-angle, mercury-free mechanical float switch is used for maximum drawdown (automatic piggyback models only) and automatic pump models can be operated manually by unplugging piggyback switch and plugging pump directly into outlet.
The overload protected, shaded pole motor eliminates starting switches and relays which are prone to fail. It is also oil-filled for maximum heat dissipation and continuous bearing lubrication. The heavy...
The overload protected, shaded pole motor eliminates starting switches and relays which are prone to fail. It is also oil-filled for maximum heat dissipation and continuous bearing lubrication. The heavy cast iron motor housing and volute case dissipate heat, allowing the motor to run cooler for extended life.
The field-tested, wide-angle, mercury-free mechanical float switch is used for maximum drawdown (automatic piggyback models only) and automatic pump models can be operated manually by unplugging piggyback switch and plugging pump directly into outlet.
Couldn't load pickup availability
Height: " | Width: " | Length: "
| Part # / Model | Motor Type & HP | Max. PSI / Head | Max. Flow Capacity | Inlet / Outlet Size | Liquid Temp. | Electrical Volt/Amp/PH |
Seal Type | Pump Housing | Solid Handling | Impeller Type | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ME3H | 1/3 HP, 1550 RPM Shaded Pole, Oil-Filled | 36 ft | 35 GPM | 1.5” | 60°C Max | 115V, 12A, 60Hz -230V, 6A,60Hz | Carbon/Cermaic | Heavy Cast Iron | 3/4" | Recessed | 20 in., 16/3, SJTW |
| ME3F | 1/3 HP, 1550 RPM Shaded Pole, Oil-Filled | 31 ft | 66 GPM | 1.5” | 60°C Max | 115V, 12A, 60Hz - 230V, 6A, 60Hz | Carbon/Ceramic | Heavy Cast Iron | 3/4" | Enclosed | 20 in., 16/3, SJTW |
