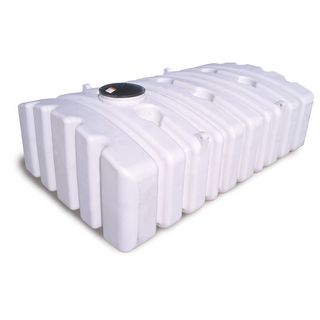

Belowground Low Profile Holding Tanks
Here's an ideal solution for water storage when you have a burying depth restriction or a need for a low footprint. Most of the low-pro tanks can be used below ground and have excellent structural strength. Check with a BARR tank specialist for which models are designed for belowground use. Risers, lids, vents and various fitting options are available!
Here's an ideal solution for water storage when you have a burying depth restriction or a need for a low footprint. Most of the low-pro tanks can be used below...
Here's an ideal solution for water storage when you have a burying depth restriction or a need for a low footprint. Most of the low-pro tanks can be used below ground and have excellent structural strength. Check with a BARR tank specialist for which models are designed for belowground use. Risers, lids, vents and various fitting options are available!
Click on Part # to View Tank Drawing
Low Profile Belowground TanksCapacity | Part # / Drawing | Dia./ Width (in) | Length (in) | Height (in) | Lid/Fill Opening (in) | Fitting (in) | Weight (lbs) | Availability | |||
---|---|---|---|---|---|---|---|---|---|---|---|
USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | |||||||
2000 | 1600 | 7570 | 42559 | N/A | 98 | 126 | 53 | 1-20 | extra | N/A | WA |
2500 | 2100 | 9464 | 42119 | N/A | 98 | 158 | 53 | 1-20 | extra | 850 | |
2500 | 2100 | 9464 | 44080 | N/A | 98 | 158 | 53 | 1-20 | extra | 850 | E |
3525 | 2935 | 13340 | 44390 | N/A | 102 | 211 | 51 | 1-20 | extra | CA | |
5025 | 4184 | 19021 | 44876 | N/A | 102 | 211 | 73 | 1-20 | extra | U, M |
Manway Extentions, Lids & Accessories
Part # (US) | Part # (CA) | Size (in) | Description | Weight (lbs) |
---|---|---|---|---|
63832 | 64233 | 6 H x 20 D | Low Profile Manhole Extension | 9 |
63833 | 64192 | 15 H x 20 D | Low Profile Manhole Extension | 13 |
63984 | 63984 | 24 H x 20 D | Low Profile Manhole Extension | 15 |
62395 | N/A | 12 D x 25 H riser pipe | Lid & Riser Combo | 13 |
62408 | N/A | 20 D | Septic/Cistern tank lid with gasket | 3 |
62406 | N/A | #14 x 1-1/4 | SS self tapping screw - 4 needed for #62408 lid | <1 |
62942 | N/A | 20 D | Ethafoam gasket for 20" septic lid #62408 | <1 |
63151 | N/A | N/A | Septic Adapter SDR35 with nut & EPDM Gasket | 3 |
63152 | N/A | N/A | Septic Adater SCH40 with nut & EPDM gasket | 4 |
