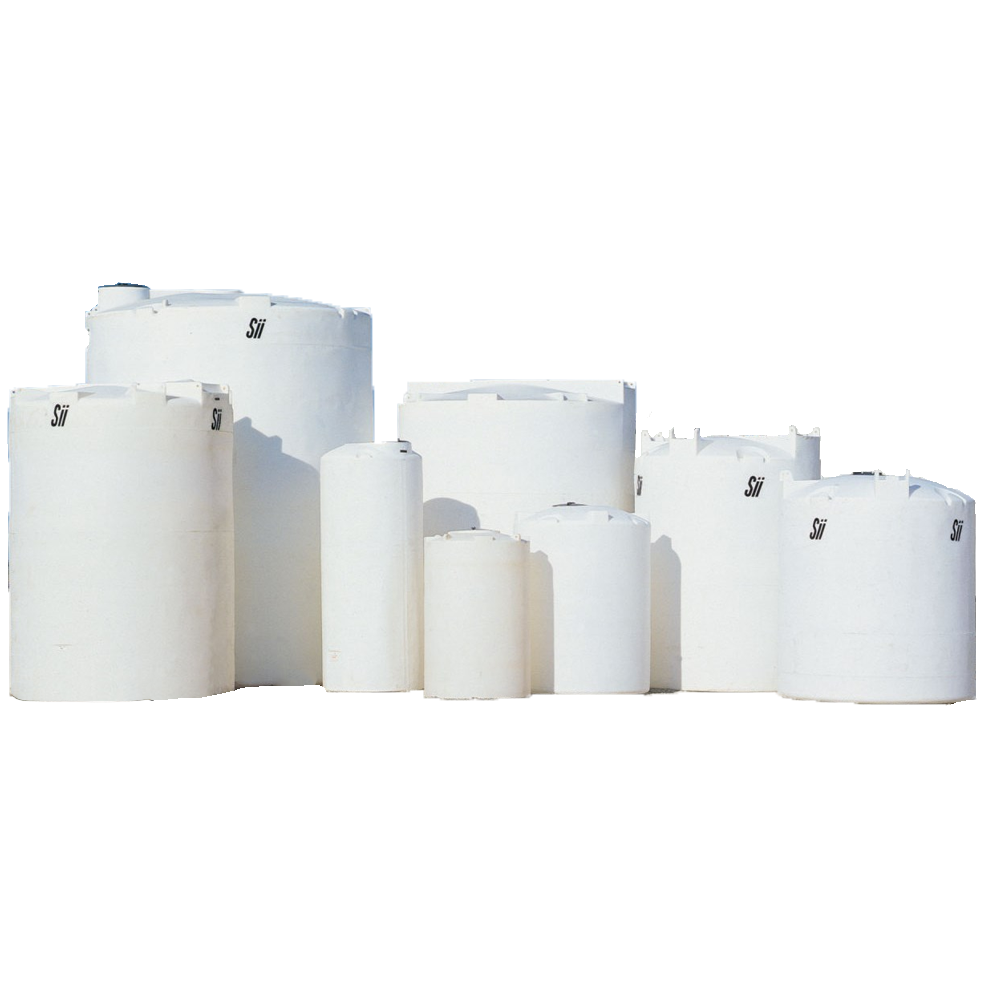

• Picture of 8 industrial tanks made for industrial applicaitons.

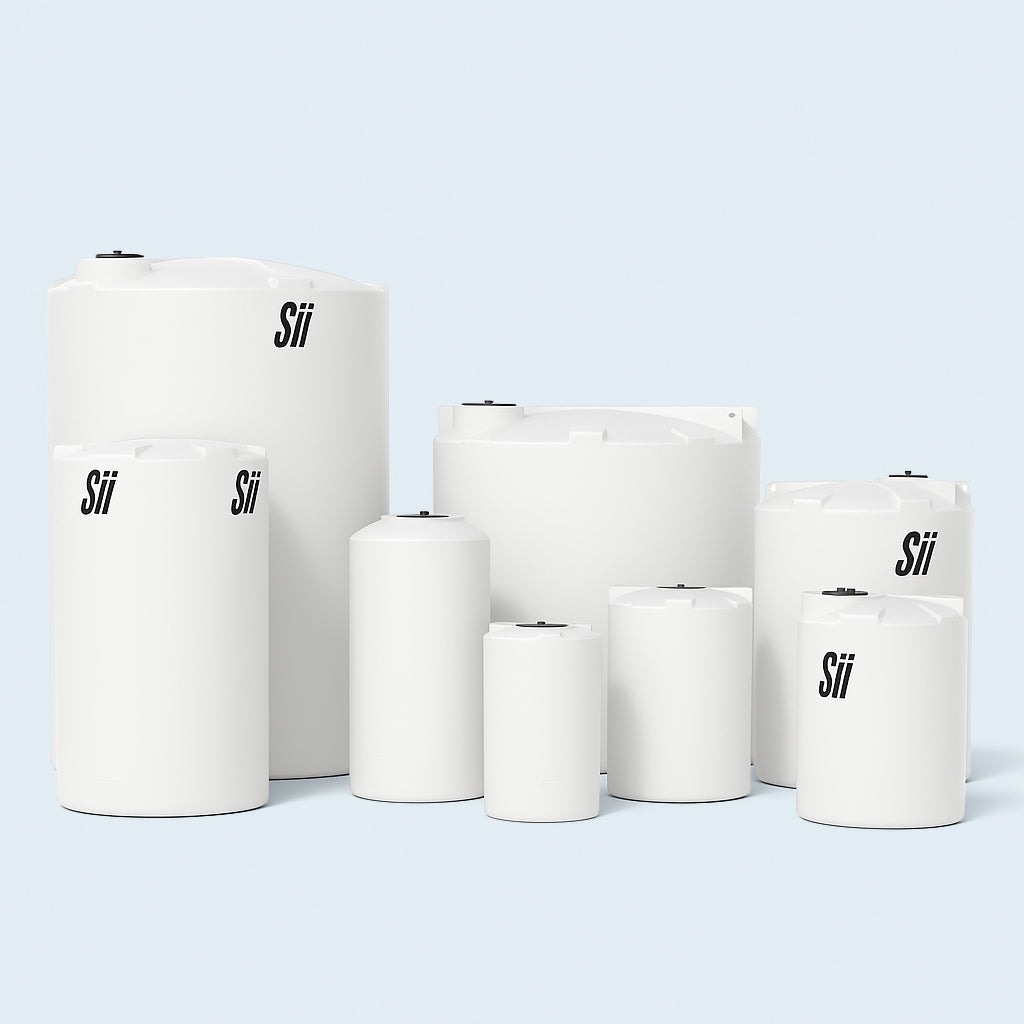

Vertical Single Wall Tanks

Our industrial-grade Vertical Single Wall Tanks can be configured with specific material options, allowing them to be used for a diverse range of applications including handling of chemicals like acids and caustics.

For all of our industrial tanks, the highest quality HDLPE and XLPE resins. The tanks are UV stabilized for long-term outdoor use and are available in black or white.

Additionally, many of the tanks have molded-in heavy duty lifting lugs and are available with IBC 2006 seismic and 150 mph wind restraint tie-down systems.

These tanks are manufactured with stringent quality controls and documented processes (ASTM-1998-06). Standard specific gravity choices are 1.5 and 1.9, however other ratings may be available upon request.

Tanks are available with a wide variety of fittings, accessories and add-ons. BARR can custom modify any of these HDLPE tanks to your specification.

To find your required accessories, view Valves, Fittings, Pumps, Hose & Hose Clamps  or contact BARR for assistance in selecting the best products for your application.

Our industrial-grade Vertical Single Wall Tanks can be configured with specific material options, allowing them to be used for a diverse range of applications including handling of chemicals like acids and...
Read More

Our industrial-grade Vertical Single Wall Tanks can be configured with specific material options, allowing them to be used for a diverse range of applications including handling of chemicals like acids and caustics.

For all of our industrial tanks, the highest quality HDLPE and XLPE resins. The tanks are UV stabilized for long-term outdoor use and are available in black or white.

Additionally, many of the tanks have molded-in heavy duty lifting lugs and are available with IBC 2006 seismic and 150 mph wind restraint tie-down systems.

These tanks are manufactured with stringent quality controls and documented processes (ASTM-1998-06). Standard specific gravity choices are 1.5 and 1.9, however other ratings may be available upon request.

Tanks are available with a wide variety of fittings, accessories and add-ons. BARR can custom modify any of these HDLPE tanks to your specification.

To find your required accessories, view Valves, Fittings, Pumps, Hose & Hose Clamps  or contact BARR for assistance in selecting the best products for your application.

Height: " | Width: " | Length: "

Click on Part # to view tank drawing
Capacity Part #/ Drawing Dia./ Width (in)
 Length (in)
 Height (in)
 Lid/Fill Opening (in)
 Weight (lbs)
USG IG LTR
22 21 95 1530000N-- 18 N/A 23 2 9
30 25 114 1541000N-- 23 N/A 23 10 15
35 29 132 1000101N-- * 22 N/A 36 6 18
50 46 208 1540700N-- 23 N/A 38 10 25
60 50 227 26 N/A 40 14 26
65 54 246 1550000N-- 23 N/A 46 6 28
90 75 341 5690000N-- * 34 N/A 36 14 43
110 92 416 8010000N-- 33 N/A 41 10 45
120 100 454 5700000N-- * 34 N/A 50 14 50
120 100 454 1540200N-- 32 N/A 39 10 45
150 125 568 5710000N-- * 34 N/A 60 14 58
190 158 719 1540400N-- 42 N/A 47 10 55
200 167 757 5720000N-- * 40 N/A 56 14 75
200 167 757 1540000N-- 40 N/A 48 6 63
200 167 757 1540300N-- 36 N/A 59 10 110
200 167 757 8020000N-- 33 N/A 69 10 80
250 208 946 5730000N-- * 40 N/A 67 14 79
275 229 1041 5740000N-- * 47 N/A 56 14 96
290 242 1098 1630200N-- 42 N/A 59 10 80
300 250 1136 1630000N-- 35 N/A 80 18 85
300 250 1136 1630100N-- 36 N/A 82 10 100
300 250 1136 8030000N-- 33 N/A 94 10 100
300 250 1136 8040000N-- 46 N/A 51 10 75
300 250 1136 1001600N-- ^  29 60" 57 18 N/A
330 275 1249 5750000N-- * 47 N/A 66 14 108
330 275 1249 1630300N-- 48 N/A 55 10 100
360 300 1363 5760000N-- * 53 N/A 56 14 116
400 333 1514 1740000N-- 45 N/A 62 18 85
400 333 1514 1001700N-- ^ 29 60" 71 18 N/A
440 367 1666 5770000N--  * 53 N/A 67 14 130
500 417 1893 5780000N-- * 53 N/A 74 14 141
550 458 2082 1800000N-- 48 N/A 75 18 130
550 458 2082 1820000N-- 64 N/A 47 18 100
550 458 2082 8060000N-- 64 N/A 46 18 100
700 583 2650 1700100N-- 48 N/A 99 18 180
710 591 2688 1700200N-- 60 N/A 68 18 185
850 708 3218 1810000N-- 48 N/A 117 18 220
1000 833 3785 1831000N-- 60 N/A 89 18 230 / 260
1100 916 4164 1830000N-- 64 N/A 90 18 300
1100 916 4164 1710000N-- 86 N/A 55 18 180
1100 916 4164 8120000N-- 86 N/A 55 18 N/A
1200 1000 4542 1830200N-- 60 N/A 109 18 300 / 310
1300 1083 4921 1830400N-- 72 N/A 87 18 290 / 320
1400 1166 5300 1840300N-- 60 N/A 128 18 345 / 390
1500 1250 5678 1770000N-- 86 N/A 72 18 260
1500 1250 5678 8120100N-- 86 N/A 72 18 220
1550 1291 5867 1840000N-- 64 N/A 124 18 305 / 335
1900 1583 7192 1780200N-- 72 N/A 119 18 445 / 520
1900 1583 7192 8300000N-- 64 N/A 147 18 460 / 510
2000 1666 7571 5050000N-- 90 N/A 88 18 324 - 400
2000 1666 7571 8130000N-- 90 N/A 88 18 350 - 475
2000 1666 7571 5050300N-- 96 N/A 84 18 420 / 500
2500 2083 9464 5090000N-- 90 N/A 107 18 425 - 560
2500 2083 9464 8140000N-- 90 N/A 107 18 427 - 570
2500 2165 9842 5090300N-- 96 N/A 98 18 510 / 620
2650 2207 10031 8390000N-- + 102 N/A 97 18 510 / 800
3000 2499 11356 5130000N-- 90 N/A 127 18 510 - 710
3000 2499 11356 8160000N-- 90 N/A 127 18 610 - 800
3000 2499 11356 5130300N-- 96 N/A 111 18 480 - 720
3000 2499 11356 7410000N-- 102 N/A 96 18 520 - 660
3650 3040 13817 8190000N-- + 102 N/A 126 18 780 / 973
3900 3249 14763 5190000N-- 90 N/A 163 18 900 / 1200
4000 3332 15142 7421100N-- 120 N/A 104 18 810 / 1000
4100 3415 15520 7360000N-- 102 N/A 130 18 850 / 1100
4100 3415 15520 8200000N-- 120 N/A 100 18 774 / 930
4400 3665 16656 5210000N-- 90 N/A 182 18 1100 / 1450
4500 3749 17034 7000400N-- 143 N/A 91 18 900 / 1100
4500 3749 17034 7420000N-- 102 N/A 142 18 900 - 1300
4600 3832 17413 7000500N-- 120 N/A 116 18 N/A
4650 3873 17602 8210000N-- + 102 N/A 154 18 1200 / 1613
4900 4082 18548 5480000N-- 90 N/A 202 18 1450 / 2000
5000 4165 18927 1002100N-- 102 N/A 154 18 950 / 1050
5500 4582 20820 7020000N-- 90 N/A 221 18 1500 / 2000
5500 4582 20820 7000000N-- 120 N/A 132 18 900 / 1250
5600 4665 21198 5250000N-- 142 N/A 102 18 1150 / 1350
6000 4998 22712 7430000N-- 102 N/A 188 18 1650 - 1800
6000 4998 22712 7140300N-- 120 N/A 145 18 N/A
6200 5165 23469 8220000N-- 120 N/A 140 18 1174 - 1678
6500 5415 24605 7140000N-- 120 N/A 153 18 1450 - 2000
6600 5498 24984 5300400N-- 120 N/A 158 18 1900 / 2100
6600 5498 24984 5300500N-- 143 N/A 123 18 N/A
7000 5831 26498 5300000N-- 142 N/A 122 18 1400 / 1900
7500 6248 28391 7440000N-- 102 N/A 234 18 2450 / 3000
8000 6664 30283 5320300N-- 143 N/A 144 18 2000 / 2250
8000 6664 30283 5300600N-- 120 N/A 186 18 1900 / 2300
8500 7081 32176 7400000N-- 120 N/A 194 18 2400 / 3100
8750 7289 33122 5360000N-- 142 N/A 143 18 2000 / 2400
9500 7914 35961 7450000N-- 120 N/A 215 18 2800 / 3600
10500 8747 39747 5330000N-- 142 N/A 169 18 2500 - 3100
10500 8747 39747 5330300N-- 143 N/A 177 18 2600 / 3000
12500 10413 47318 5350000N-- 142 N/A 198 18 3100 / 4200
15000 12495 56781 5370000N-- 142 N/A 234 18 4400 / 5800
16500 13745 62459 5380000N-- 142 N/A 257 18 5100 / 5600
* = Closed Top
^ = Narrow Storage Tanks
+ = No Tie-Down Lugs
