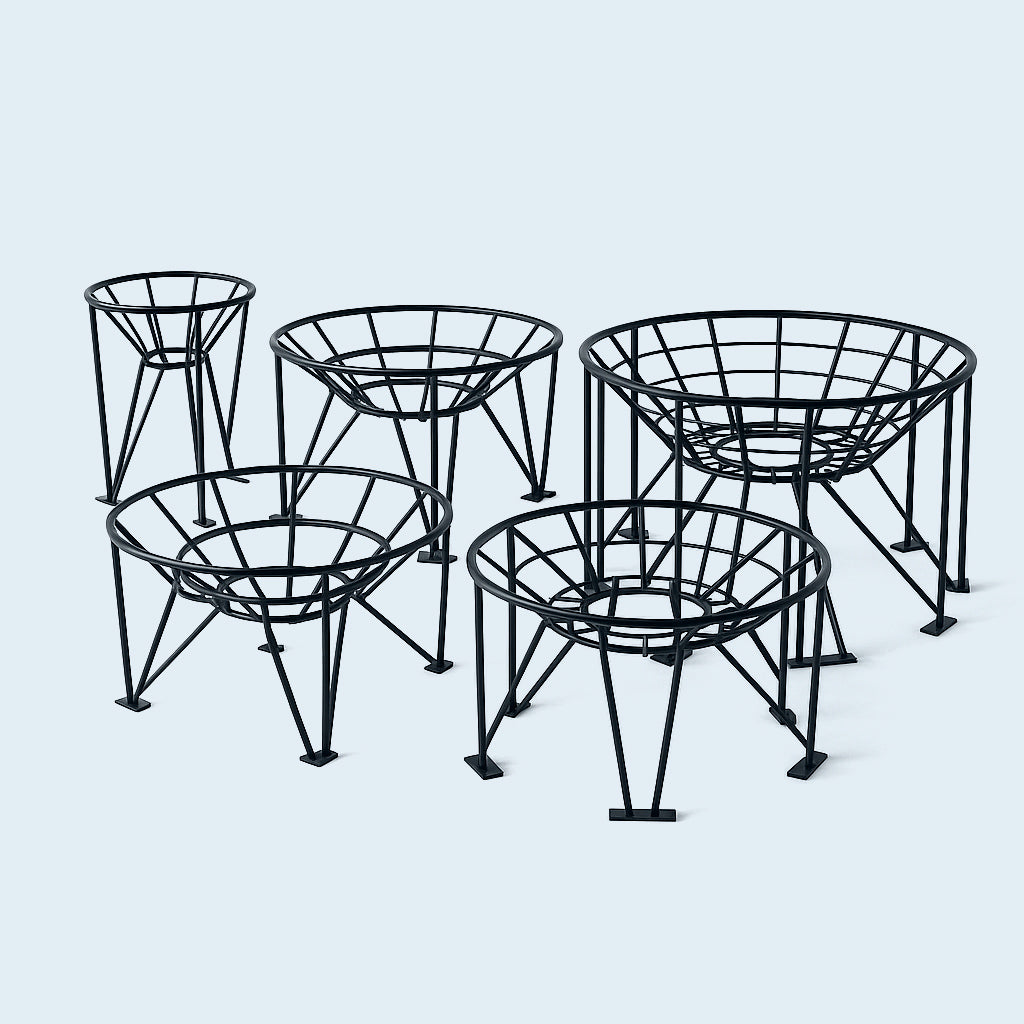

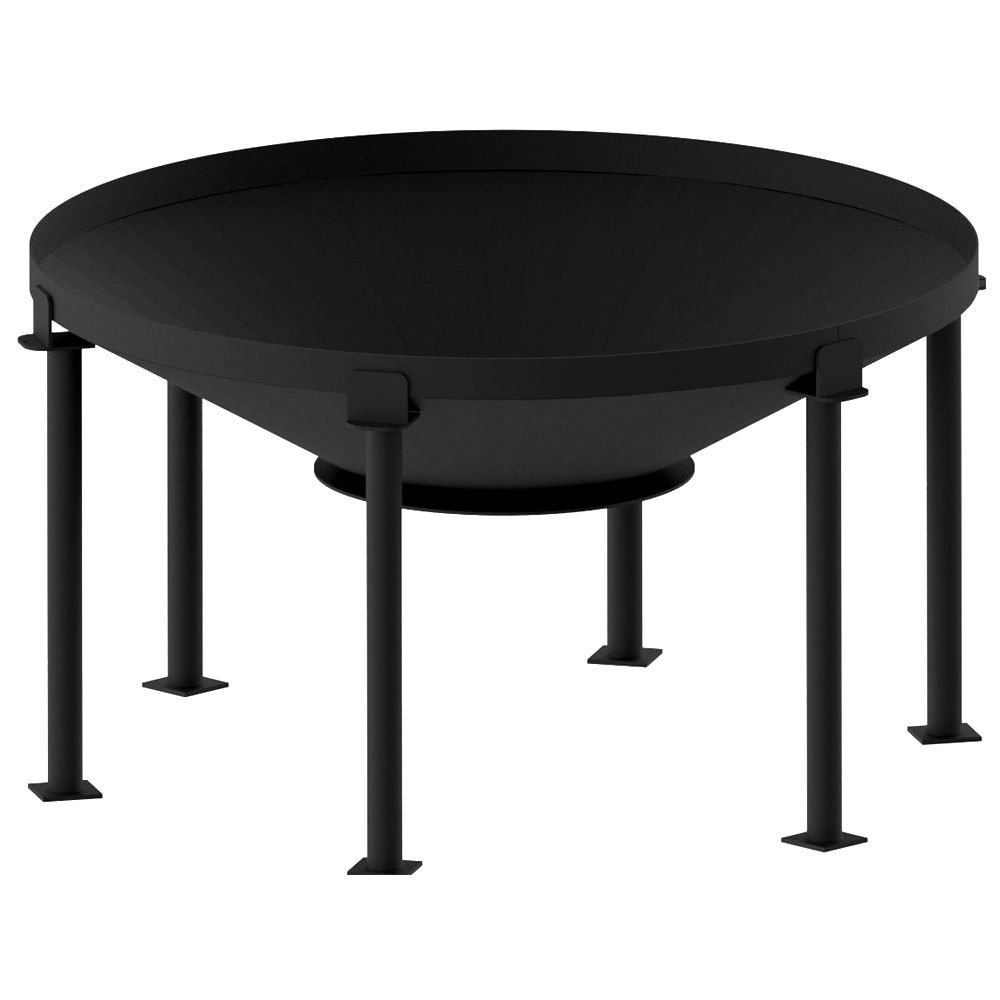

Industrial Cone Bottom Tank Stands
All stands are coated with black water-based enamel paint with rust inhibitors. Seismic approved. BARR can build fully custom stands or simply modify heights of standard stands to meet specific applications and plant configurations. Other custom options are available such as attachments and fixtures for pumps, mixers, piping, etc. For corresponding tanks, see the Industrial Cone Bottom Tanks product page.
All stands are coated with black water-based enamel paint with rust inhibitors. Seismic approved. BARR can build fully custom stands or simply modify heights of standard stands to meet specific...
All stands are coated with black water-based enamel paint with rust inhibitors. Seismic approved. BARR can build fully custom stands or simply modify heights of standard stands to meet specific applications and plant configurations. Other custom options are available such as attachments and fixtures for pumps, mixers, piping, etc. For corresponding tanks, see the Industrial Cone Bottom Tanks product page.
Height: " | Width: " | Length: "
Part # | Diameter (in) | Height (in) | Description | Weight (lbs) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30° Slope - Cone Bottom Tank Stands | ||||||||||||||
48600 | 31 | 21 | Cone Bottom Stand for 35 USGÂ Tank # 1580000N-- | 30 | ||||||||||
48600 | 31 | 21 | Cone Bottom Stand for 65 USGÂ Tank # 1560000N-- | 30 | ||||||||||
48600 | 31 | 21 | Cone Bottom Stand for 110 USGÂ Tank # 6070000N-- | 30 | ||||||||||
C5475P 475 | 60 | N/A | Cone Bottom Stand for 475 USGÂ Tank # 1560300N-- | N/A | ||||||||||
79000Â * | 86 | 37 | 4 Leg Cone Bottom Stand for 500 USG Tank |
136 | ||||||||||
79000 * | 86 | 37 | 4 Leg Cone Bottom Stand for 1000 USG Tank # 1890000N-- | 136 | ||||||||||
79000 * | 86 | 37 | 4 Leg Cone Bottom Stand for 1400 USG Tank #Â 1900000N-- | 136 | ||||||||||
79000 * | 86 | 37 | 4 Leg Cone Bottom Stand for 1650 USG Tank #Â 1910000N-- | 136 | ||||||||||
78900 * | 86 | 37 | Seismic 4 Leg Cone Bottom Stand for 1650 USG Tank # 1910000N-- | N/A | ||||||||||
79300 * | 90 | 45 | Seismic 12 Leg 65 Ton Cone Bottom Stand for 2000 USG Tank # 5070000N-- | 349 | ||||||||||
79300 * | 90 | 45 | Seismic 12 Leg 65 Ton Cone Bottom Stand for 2500 USG Tanks # 1910000N-- & 8350000N-- | 349 | ||||||||||
79300 * | 90 | 45 | Seismic 12 Leg 65 Ton Cone Bottom Stand for 3000 USG Tanks # 5150000N-- & 8360000N-- | 349 | ||||||||||
79300 * | 90 | 45 | 12Â Leg 65 Ton Cone Bottom Stand for 3900 USGÂ Tank # 5440000N-- | 349 | ||||||||||
79800 * | 90 | 45 | Seismic 12 Leg Cone Bottom Stand for 3900 USG Tank # 5440000N-- | 400 | ||||||||||
79300 * | 90 | 45 | 12Â Leg 65 Ton Cone Bottom Stand for 4400 USGÂ Tank # 5200000N-- | 349 | ||||||||||
79800 * | 90 | 45 | Seismic 12 Leg Cone Bottom Stand for 4400 USG Tank # 5440000N-- | 400 | ||||||||||
79300 * | 90 | 45 | 12Â Leg 65 Ton Cone Bottom Stand for 5500 USGÂ Tank # 7040000N-- | 349 | ||||||||||
79300 * | 90 | 45 | 12Â Leg 65 Ton Cone Bottom Stand for 6000 USGÂ Tank #Â 5280000N-- | 349 | ||||||||||
79500 | 142 | 62 | 12Â Leg 100 Ton Cone Bottom Stand for 6000 USGÂ Tank #Â 5280000N-- | 761 | ||||||||||
79300 * | 90 | 45 | 12 Leg 65 Ton Cone Bottom Stand for 6500 USG Tank # 7180000N-- | 349 | ||||||||||
79500 | 142 | 62 | 12 Leg 100 Ton Cone Bottom Stand for 6500 USG Tank # 7180000N-- | 761 | ||||||||||
79500 | 142 | 62 | 12 Leg 100 Ton Cone Bottom Stand for 7400 USG Tank # 5320000N-- | 761 | ||||||||||
79500 | 142 | 62 | 12 Leg 100 Ton Cone Bottom Stand for 11500 USG Tank # 5340000N-- | 761 | ||||||||||
78401000 | 95 | 45 | 8 Leg Cone Bottom Stand | N/A | ||||||||||
45° Slope - Cone Bottom Tank Stands | ||||||||||||||
48900 | 16" | 30" | Cone Bottom Stand for 15 USGÂ Tank # 1520000N-- | 20 | ||||||||||
C5500P 500 | 60"Â | N/A | Cone Bottom Stand for 500 USGÂ Tank # 1880100N-- | N/A | ||||||||||
78800 * | 66" | 44" | 4 Leg Cone Bottom Stand for 500 USG Tank # 6190000N-- | 140 | ||||||||||
78800 * | 66" | 44" | 4 Leg Cone Bottom Stand for 1000 USG Tank # 5000000N-- | 140 | ||||||||||
78800 * | 66" | 44" | 4 Leg Cone Bottom Stand for 1500 USG Tank # 5010000N-- | 140 | ||||||||||
79400 | 90" | 58" | 12Â Leg 60 Ton Cone Bottom Stand for 2600 USGÂ Tank # 5100000N-- | 400 | ||||||||||
79400 | 90" | 58" | 12Â Leg 60 Ton Cone Bottom Stand for 4100 USGÂ Tank # 5180000N-- | 400 | ||||||||||
79900 | 90" | 58" | Seismic 12 Leg Cone Bottom Stand for 4100 USG Tank # 5180000N-- | 451 | ||||||||||
60° Slope - Cone Bottom Tank Stands | ||||||||||||||
48400 | 18" | 31" | Cone Bottom Stand for 17 USGÂ Tank # 1850000N-- | N/A | ||||||||||
C5070 70 | 32" | N/A | Cone Bottom Stand for 70 USGÂ Tank # H15601-- | N/A |
