Custom Heated & Insulated Holding Tanks
Insulated & heated chemical, sewage, and water holding tanks for aboveground outdoor use in a variety of sizes provide freeze protection of minimum temperature maintenance. Specially designed and manufactured for cold weather climates, these tanks can be fitted with level alarms, pumps, and pump control devices to fit your unique applications.
Call our Custom Fabrication Division today to speak to one of our technical staff about your specific requirements.
Insulated & heated chemical, sewage, and water holding tanks for aboveground outdoor use in a variety of sizes provide freeze protection of minimum temperature maintenance. Specially designed and manufactured for...
Insulated & heated chemical, sewage, and water holding tanks for aboveground outdoor use in a variety of sizes provide freeze protection of minimum temperature maintenance. Specially designed and manufactured for cold weather climates, these tanks can be fitted with level alarms, pumps, and pump control devices to fit your unique applications.
Call our Custom Fabrication Division today to speak to one of our technical staff about your specific requirements.
Couldn't load pickup availability
This product is a Special order item. Please contact Sales Representative through the "Request a Quote" below.
| Img | Description | Part # |
|---|---|---|
 |
1000 IG Custom Heated & Insulated Holding Tank - Sewage | HIHT1000-S |
 |
2000 IG Custom Heated & Insulated Holding Tank - Sewage | HIHT2000-S |
 |
1000 IG Custom Heated & Insulated Holding Tank - Sewage - Sprayfoamed | HIHT1000-SPRAY |
|
|
Custom Heated & Insulated Holding Tanks |
CUSTOM |

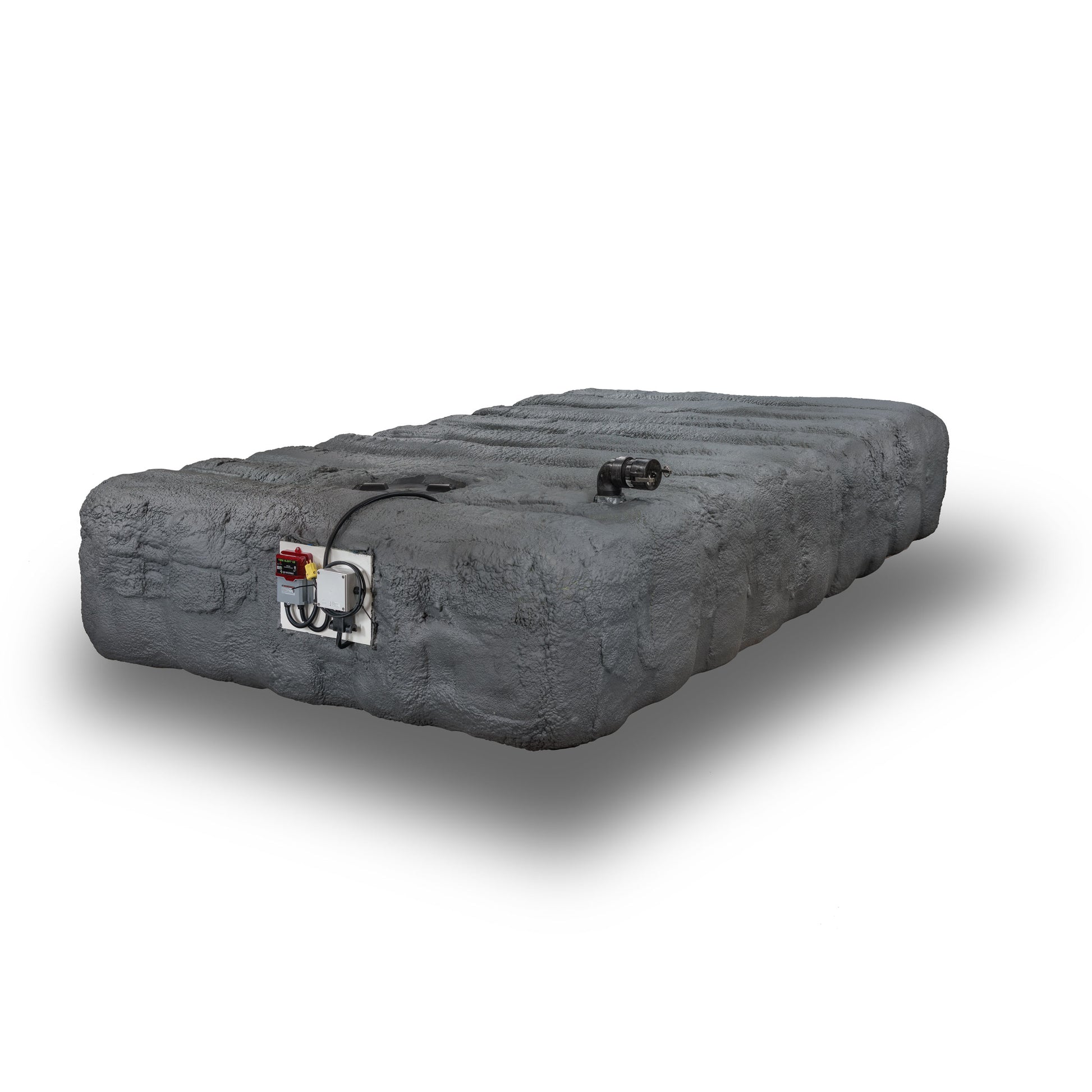

Heated & Insulated Low-Profile Tanks
Our Heated and Insulated Low-Profile Tanks are expertly designed for outdoor, aboveground storage, ensuring reliable performance in cold climates. These tanks are perfect for holding chemicals, sewage, or water, providing exceptional freeze protection as temperatures drop. They are customizable to meet your specific needs, with options for level alarms, pumps, pump control devices, and additional features.
Durable and Efficient Construction
Available in standard capacities of 1000 and 2000 Imperial Gallons, these tanks feature a reinforced steel exterior with a corrosion-resistant inner plastic tank made from high-density polyethylene (HDPE). The tanks are equipped with internal support columns, providing durability and resistance to impact from all sides, as well as top-loading damage. Custom sizes are also available to suit your requirements.
Advanced Heating and Insulation
Each tank includes:
- Heating System: A 120V self-regulating heating cable ensures consistent temperature control.
- Insulation: Encased in 2-inch thick EPS foam panels with pre-painted metal cladding for superior heat retention and moisture resistance. Thicker insulation options are available for increased R-values.
Key Features
- Structural Strength: Built with steel edge reinforcements, durable cladding, and robust internal columns.

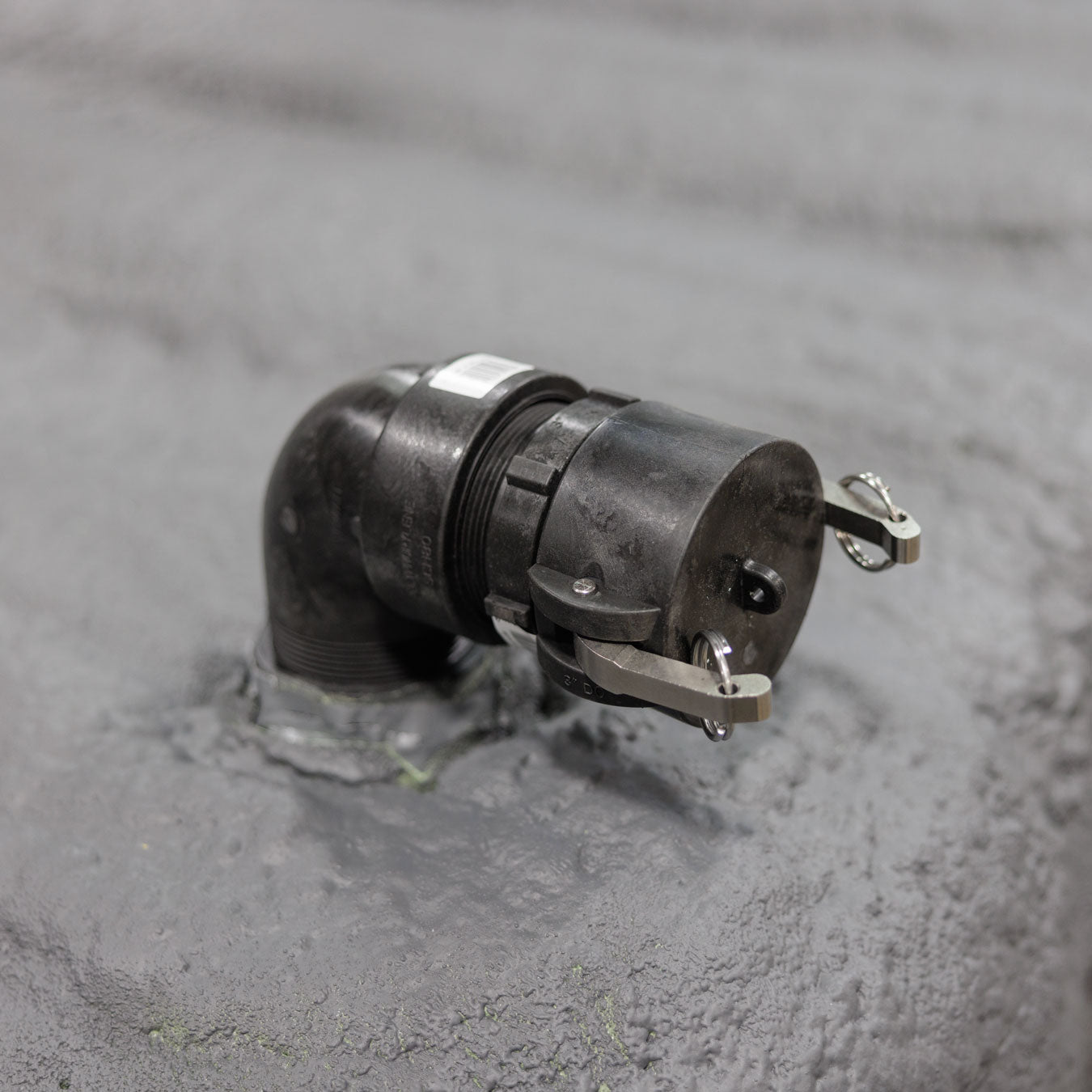

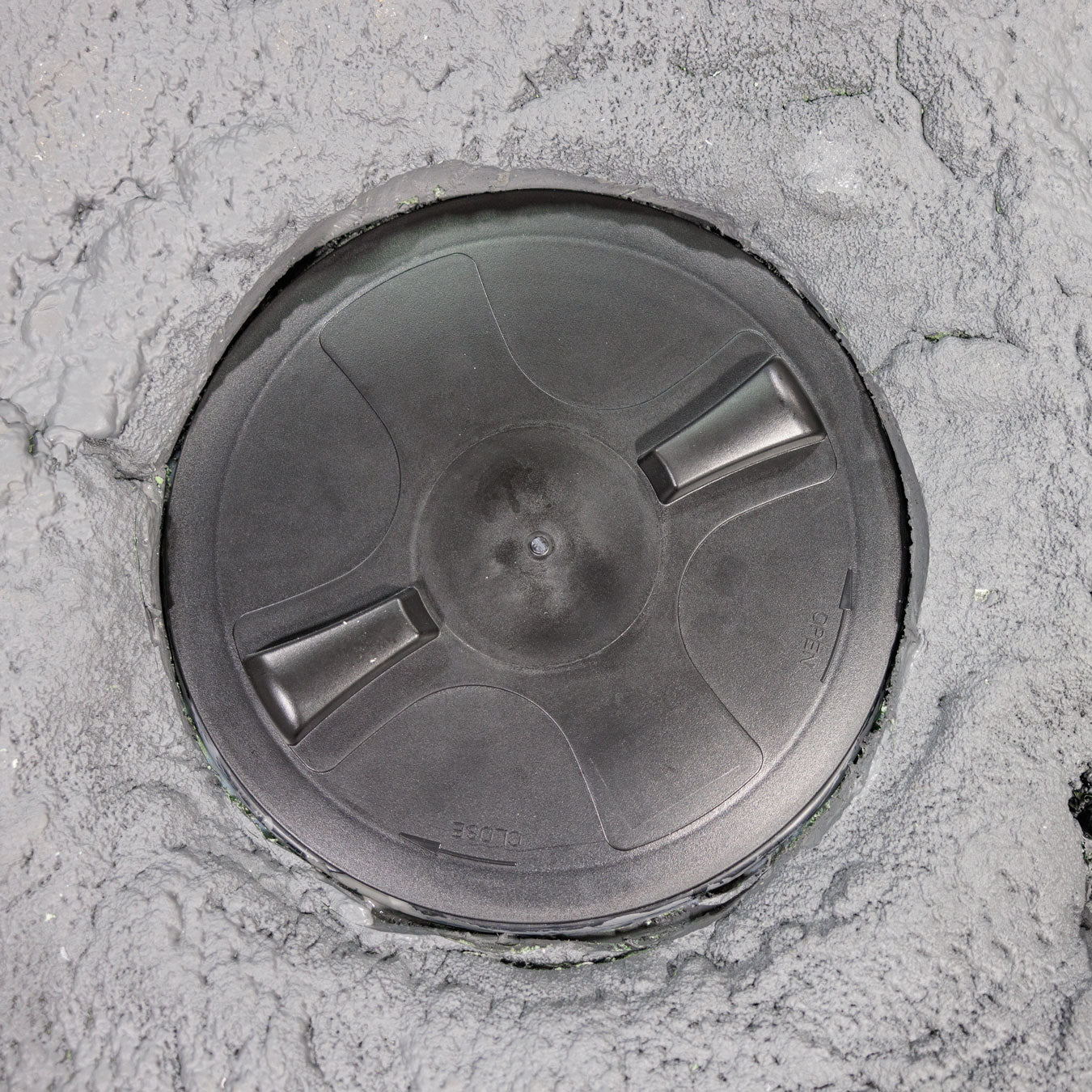

- Customizable Inlets and Fittings: Various inlet locations, venting options, and lid sizes (16", 20", or 24") to suit your application.
- Stackable for Shipping: Empty tanks can be stacked four high, optimizing transport efficiency.

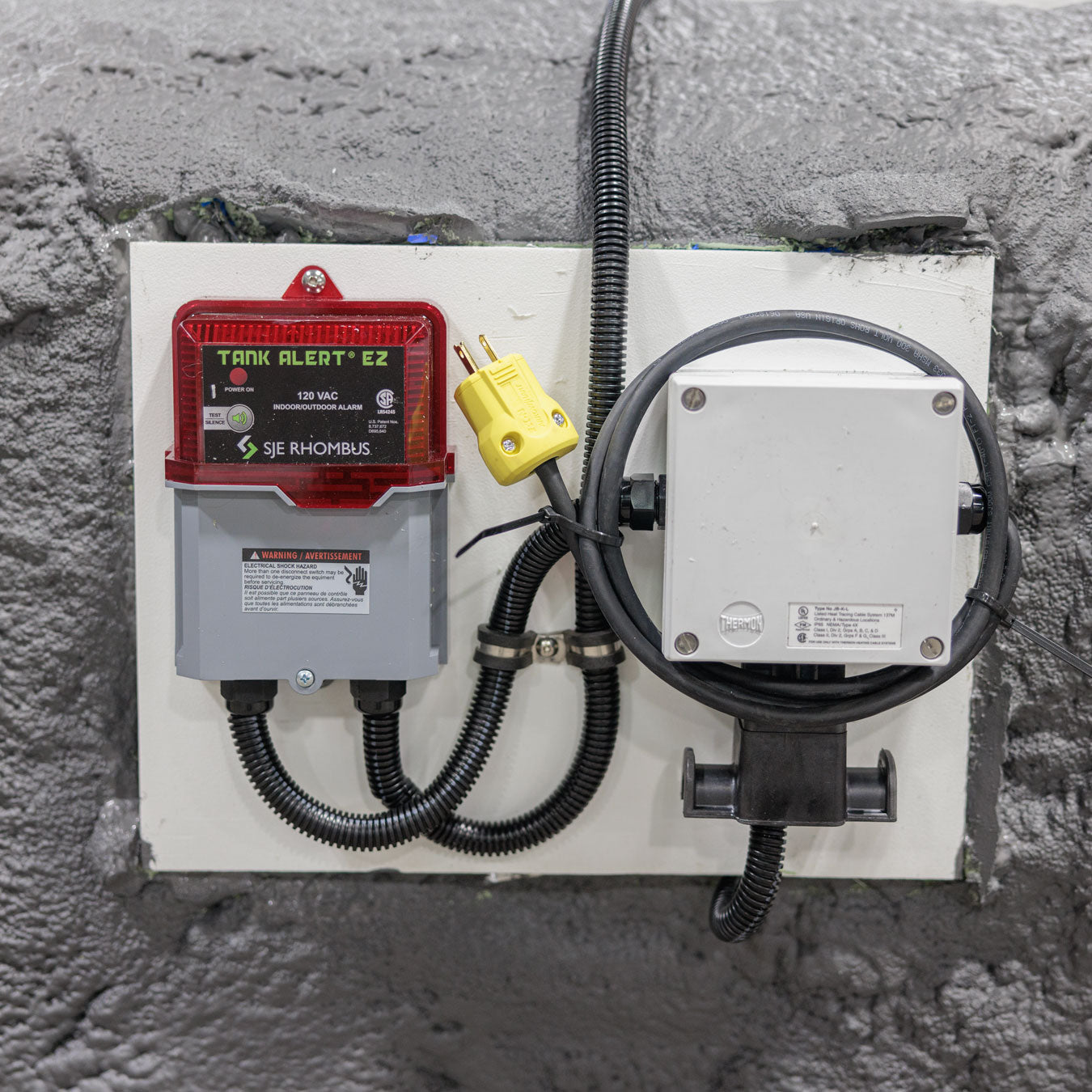

- High-Level Alarm: An integrated alarm system alerts users when the tank is 75% full.
Applications and Versatility
These tanks are ideal for:
- Sewage and wastewater holding
- Potable water storage
- Industrial chemical containment
They meet CSA and NSF standards, ensuring safe use for sewage and potable water applications. With their robust design, they are tested to withstand extreme temperatures as low as -35°C, making them suitable for the harshest environments.
Customization and Support
At BARR Plastics, we collaborate with you to develop a tank that perfectly matches your needs. From additional insulation to enhanced structural features, our team is ready to assist. Contact us at +1-866-790-6753 to discuss your project and discover a reliable solution tailored to your specifications.
Why Choose BARR Plastics?
BARR Heated and Insulated Low-Profile Tanks are built to last, providing superior performance in cold climates with innovative features and customization options. Trust us to deliver durable, high-quality tanks for your storage needs.
Spec Sheet LiteratureHEATING
100’ of 8 watt/foot, 120V, self-regulating heating cable is placed and secured in a continuous loop on the underside of the inner polyethylene Tank and is fitted with a ground fault protector and standard 120 V plug.
INSULATION
Is provided by the 2” thick structural, insulated panels that surround the inner Tank. EPS foam board insulation is sandwiched between and bonded to 2 layers of 26 gauge pre-painted metal cladding. EPS foam board contains no CFC’s or HCFC’s, is recyclable, moisture resistant and will not lose it’s insulation R value over years. Using EPS as the core insulation, contributes to the “green” building ideal. Use of EPS insulation products can provide USGBC LEED-NC v2.2 credits, including Sustainable Sites, Energy & Atmosphere and Materials & Resources. R Value of exterior cladding and insulation as installed is approx. 12. Greater R-values available with thicker Insulated Panels.
EXTERIOR CLADDING & INTERNAL STRUCURE
26 gauge prepainted metal cladding with slight and attractive corrugations with 90 degree pre-painted metal flashing securely fastened to all edges. All seams and joints are neatly finished and fully sealed with a polyurethane sealant to keep out moisture and cold air flow to improve insulating capacity and heat retention.
Standard exterior colour is off-white and a variety of trim colours are available to match customer’s colour scheme or brand. In addition to the structure provided by the HD poly tank with internal support columns and corrugated walls, the steel base skid and the structural insulated exterior panels, steel angle iron framing is installed under the edge trim all around the top & bottom edges and 4 vertical corners and welded to the base skid to provide additional structural strength and durability against impact or improper side-pulls that destroy other similar looking tank products. BARR Tanks are made to last in rugged environments.
