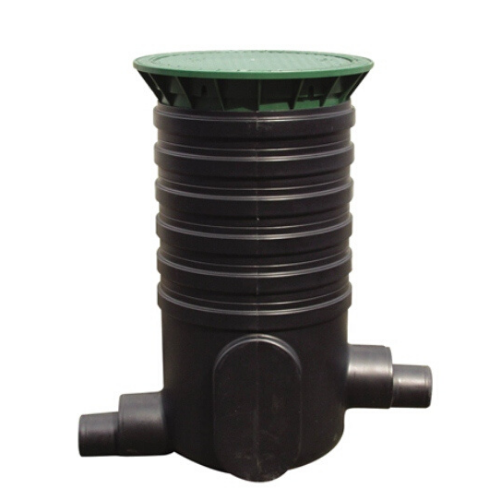

GRAF Universal Shaft Modular Sump Chamber
Designed to the used in conjunction with the EcoBloc modular system, this infiltration shaft system is comprised of of an inlet and distributor module of 16" or 24" in diameter. Choose from a variety of covers depending on the required load class.
Shaft extensions may be added between the primary modules; this allows a simple and secure extension for infiltration systems with high earth coverings.
Designed to the used in conjunction with the EcoBloc modular system, this infiltration shaft system is comprised of of an inlet and distributor module of 16" or 24" in diameter....
Designed to the used in conjunction with the EcoBloc modular system, this infiltration shaft system is comprised of of an inlet and distributor module of 16" or 24" in diameter. Choose from a variety of covers depending on the required load class.
Shaft extensions may be added between the primary modules; this allows a simple and secure extension for infiltration systems with high earth coverings.
Couldn't load pickup availability
| Part # / Model | Size (in) | Description | Weight (lbs) |
|---|---|---|---|
| 330360 | N/A | Infiltration Inlet Module (DN600 Series) | N/A |
| 340523 | N/A | Infiltration Filter Strainer (DN600 Series) | N/A |
| 330362 | 21" - 9" | Infiltration Connecting Piece (21" - 9" Usable Length) (DN600 Series) | N/A |
| 371003 | 12" | Infiltration Connecting Piece (12" Usable Length)(DN600 Series) | N/A |
| 330361 | N/A | Infiltration Distributor Module (DN600 Series) | N/A |
| 330598 | N/A | Infiltration Choke Drain (DN600 Series) | N/A |
