Universal-Filter 3 XL internal | 340107
Out of stock |
SKU: 340107

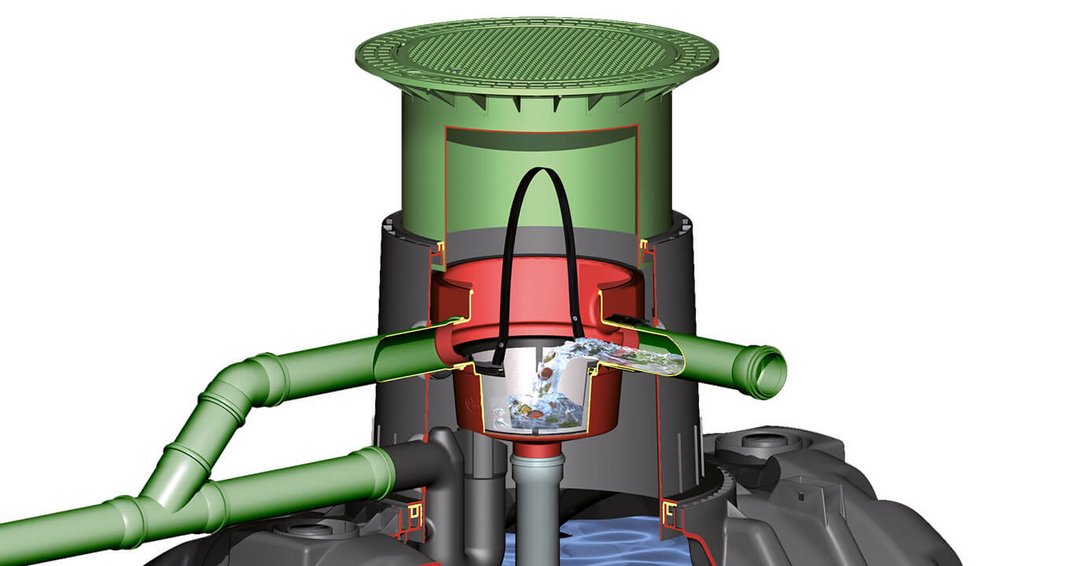

The GRAF Universal Filter 3 Internal and XL Internal is intended for use in the Tank dome Carat and allows up to a 100% water yield. Both filter housings can easily be removed without tools and are ideally suited when connecting the tank to a soakaway.
Max flow rate of 5.5 l/s with DN100 (4") connection and max flow rate of 16 l/s with DN 150 (6"). Filters feature a standard 100 mm connection and a 275 mm offset height between inlet and outlet.
The GRAF Universal Filter 3 Internal and XL Internal is intended for use in the Tank dome Carat and allows up to a 100% water yield. Both filter housings can...
The GRAF Universal Filter 3 Internal and XL Internal is intended for use in the Tank dome Carat and allows up to a 100% water yield. Both filter housings can easily be removed without tools and are ideally suited when connecting the tank to a soakaway.
Max flow rate of 5.5 l/s with DN100 (4") connection and max flow rate of 16 l/s with DN 150 (6"). Filters feature a standard 100 mm connection and a 275 mm offset height between inlet and outlet.
Couldn't load pickup availability
Height: 18" | Width: 19" | Length: 19"
Click on Part # to view technical drawing
Filters
| Part # | Description | Max Flow Rate | Length/Width/Height (mm) | Connection | Weight (kg) |
|---|---|---|---|---|---|
| 340107 | Universal filter 3 XL Internal | 16 l/s | 535 x 535 x 485 | DN 150 (6") | 4.6 (10 lbs) |
- Allows up to 100 % water yield
- Space-saving filter technology inside the tank
- The filter housing can be easily removed without tools
- Ideally suited when connecting the tank to a soakaway
- 275 mm offset height between inlet and outlet
- Can manage roof areas up to 350 m²
- Standard 100 mm connections
- Emergency overflow system available (optional extra)
- Sieve set mesh width 0.35 mm (0.01")
Â
Accessories
| Img | Part # | Description |
|---|---|---|
 |
340056 | Replacement filter basket |
