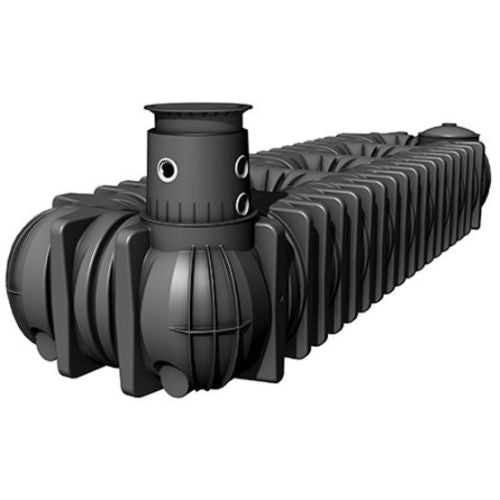

GRAF Platin XL/XXL Tanks
The innovative Platin XL/XXL is now available at BARR. Available in the 10,000 L - 25,000 capacities, the Platin XL/XXL has new features and options, including:
- Tank height of just 125 cm (4' 1"): save time on installation
- Lightweight - transport and installation is easier compared to steel and concrete tanks
- Easily rotatable tank dome for connecting pipes - rotate 360°
- Telescopic dome shaft for maximum height flexibility
- Second tank dome can be added/equipped
- Tank and filters are sealed up to the top edge of the ground to prevent decreased water quality
- Connection and lip seals are pre-drilled and assembled to save you time
- Flexible connections on the tank dome and end face possible
The Platin series of tanks can be connected in a modular fashion to expand storage which adds significantly to its lifespan. Platin Tanks are a one of kind product that can fit under driveways and sloped surfaces, ideal for installing highly beneficial Rainwater Harvesting Systems in urban residential areas and developments.
The innovative Platin XL/XXL is now available at BARR. Available in the 10,000 L - 25,000 capacities, the Platin XL/XXL has new features and options, including: Tank height of just...
The innovative Platin XL/XXL is now available at BARR. Available in the 10,000 L - 25,000 capacities, the Platin XL/XXL has new features and options, including:
- Tank height of just 125 cm (4' 1"): save time on installation
- Lightweight - transport and installation is easier compared to steel and concrete tanks
- Easily rotatable tank dome for connecting pipes - rotate 360°
- Telescopic dome shaft for maximum height flexibility
- Second tank dome can be added/equipped
- Tank and filters are sealed up to the top edge of the ground to prevent decreased water quality
- Connection and lip seals are pre-drilled and assembled to save you time
- Flexible connections on the tank dome and end face possible
The Platin series of tanks can be connected in a modular fashion to expand storage which adds significantly to its lifespan. Platin Tanks are a one of kind product that can fit under driveways and sloped surfaces, ideal for installing highly beneficial Rainwater Harvesting Systems in urban residential areas and developments.
Couldn't load pickup availability
Height: " | Width: " | Length: "
Platin XL
Click on Part # to view tank drawing| Capacity | Part # / Drawing | Dia./ Width | Length | Height(Tank Shoulder) | Height (Dome Collar) | Lid/Fill Opening | Weight (lbs) | Product Page | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | |||||||
| 2642 | 2199 | 10000 | N/A | 390822 | 88" | 193" | 51" | 12" | 24" &various fitting locations | 1014 | Open Product Page |
| 3962 | 3299 | 15000 | N/A | 390823 | 89" | 295" | 51" | 12" | " | 1565 | Open Product Page |
Platin XXL
Click on Part # to view tank drawing| Capacity | Part # / Drawing | Dia./ Width | Length | Height(Tank Shoulder) | Height (Dome Collar) | Lid/Fill Opening | Weight (lbs) | Product Page | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | Premium Weight 1.5-1.7 SG | Heavy Weight 1.9 SG | |||||||
| 5283 | 4399 | 20000 | N/A | 391810 | 88" | 370" | 51" | 12" | 24" &various fitting locations | 1962 | Open Product Page |
| 6604 | 5499 | 25000 | N/A | 391811 | 88" | 459" | 51" | 12" | " | 2513 | Open Product Page |
