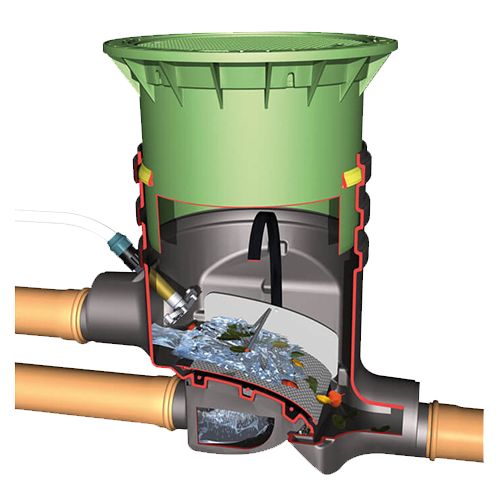

GRAF Optimax Filter External
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from 22" - 41" you have the option to choose what best suits you; a pedestrian loading system comes standard which can be swapped out for one capable of vehicle loading (both can be locked). The 4" connections will cover a roof area of up to 3700 sq. ft., and the 6" connections will cover up to 8000 sq. ft.
- Minimal height offset (200 mm) between the inlet and outlet
- Very smooth surface and therefore max. self-cleaning, mesh wide 0.35 mm (0.01")
Â
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from...
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from 22" - 41" you have the option to choose what best suits you; a pedestrian loading system comes standard which can be swapped out for one capable of vehicle loading (both can be locked). The 4" connections will cover a roof area of up to 3700 sq. ft., and the 6" connections will cover up to 8000 sq. ft.
- Minimal height offset (200 mm) between the inlet and outlet
- Very smooth surface and therefore max. self-cleaning, mesh wide 0.35 mm (0.01")
Â
Couldn't load pickup availability
Height: " | Width: " | Length: "
Click on Part # to view technical drawing
Pedestrian Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340030 | Optimax Filter External | 16 l/s | 550 (21.7") | 860 (33.9") | DN 100 (4")
|
14 (31 lbs) |
Vehicle Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340031 | Optimax Filter External | 16 l/s | 550 (21.7") | 860 (33.9") | DN 100 (4")
|
40 (88 lbs) |
