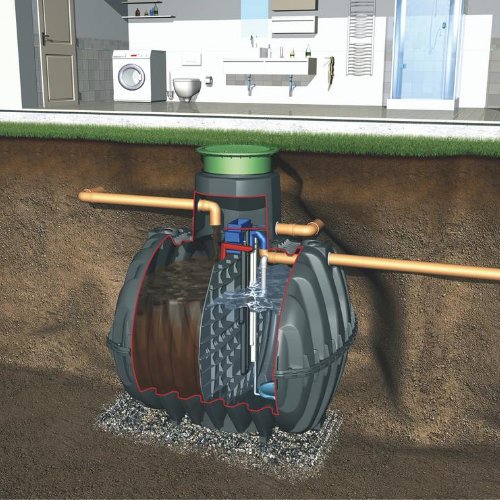

GRAF Klaro Wastewater Treatment System
No Live Technology in the Reservoir
No consistent integration of live technology is needed in the tank. All movement processes are performed by an air compressor, built into the KLARO system control. The distribution of air in the individual pump processes is realized via the control. The air compressor is very durable and whisper-quiet.
Simple Installation
The air pressure hoses of the reservoir and the corresponding connections to the system control are colour-coded to avoid installation errors. Already fitted to the carrier system at the factory, the whole system just needs to be fitted to the baffle of the reservoir. Thanks to the KLARO E Professional carrier system, the purifying technology is extremely fast to install (one-reservoir system).
Low Maintenance
The compact switch cabinet for system control with air compressor and valve unit is installed in the plant room of the house and requires little maintenance. The LCD display shows the operating hours of the individual devices. Any power failure is indicated with a visual and audio alarm. All components installed in the switch cabinet are arranged in such a way that they can be exchanged easily.
Flexible
The KLARO can be be flexibly adjusted to changing conditions by altering the cycle times. The system can also be switched to holiday mode. The aeration automatically adjusts to the load with the convenience package.
These systems are intended for contractors and we highly recommend proper design and engineer consultation for all projects.
No Live Technology in the Reservoir No consistent integration of live technology is needed in the tank. All movement processes are performed by an air compressor, built into the KLARO...
No Live Technology in the Reservoir
No consistent integration of live technology is needed in the tank. All movement processes are performed by an air compressor, built into the KLARO system control. The distribution of air in the individual pump processes is realized via the control. The air compressor is very durable and whisper-quiet.
Simple Installation
The air pressure hoses of the reservoir and the corresponding connections to the system control are colour-coded to avoid installation errors. Already fitted to the carrier system at the factory, the whole system just needs to be fitted to the baffle of the reservoir. Thanks to the KLARO E Professional carrier system, the purifying technology is extremely fast to install (one-reservoir system).
Low Maintenance
The compact switch cabinet for system control with air compressor and valve unit is installed in the plant room of the house and requires little maintenance. The LCD display shows the operating hours of the individual devices. Any power failure is indicated with a visual and audio alarm. All components installed in the switch cabinet are arranged in such a way that they can be exchanged easily.
Flexible
The KLARO can be be flexibly adjusted to changing conditions by altering the cycle times. The system can also be switched to holiday mode. The aeration automatically adjusts to the load with the convenience package.
These systems are intended for contractors and we highly recommend proper design and engineer consultation for all projects.
Couldn't load pickup availability
| Capacity | Daily Flow | Part # | Description | Weight (lbs) | ||
|---|---|---|---|---|---|---|
| USG | IG | LTR | ||||
| One Reservoir Systems | ||||||
| 713 |
594 |
2700 |
750 LPD |
KLARO750 | 2700L Tank w/ CAN101 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 309 |
| 990 | 820 | 3750 | 1200 LPD | KLARO1150 | 3750L Tank w/ CAN101 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 385 |
| 1270 | 1050 | 4800 | 1500 LPD | KLARO1400 | 4800L Tank w/ CAN102 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 485 |
| 1720 | 1430 | 6500 | 2100 LPD | KLARO1700 | 6500L Tank w/ CAN103 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 585 |
| Two Reservoir Systems | ||||||
| 1420 | 1190 | 5400 | 1500 LPD | KLARO1500 | 2 x 2700L Tank w/ CAN201 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 2 x 265 (430) |
| 1980 | 1650 | 7500 | 2400 LPD | KLARO2400 | 2 x 3750L Tank w/ CAN202 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 2 x 330 (660) |
| 2540 | 2100 | 9600 | 3300 LPD | KLARO3350 | 2 x 4800L Tank w/ CAN203 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 2 x 410 (820) |
| 3430 | 2860 | 13000 | 4200 LPD | KLARO4200 | 2 x 6500L Tank w/ CAN204 Setup Kit, Mini Dome, Mini Riser, Baffle, Cabinet, Compressor & Controller Unit and Pipe Seals | 2 x 485 (970) |
KLARO systems can be sized up to 27,000 LPD in 10 - 6500 L CARAT Tanks and systems up to 150,000 LPD in larger Fibreglass or Poured in Place Concrete vessels
