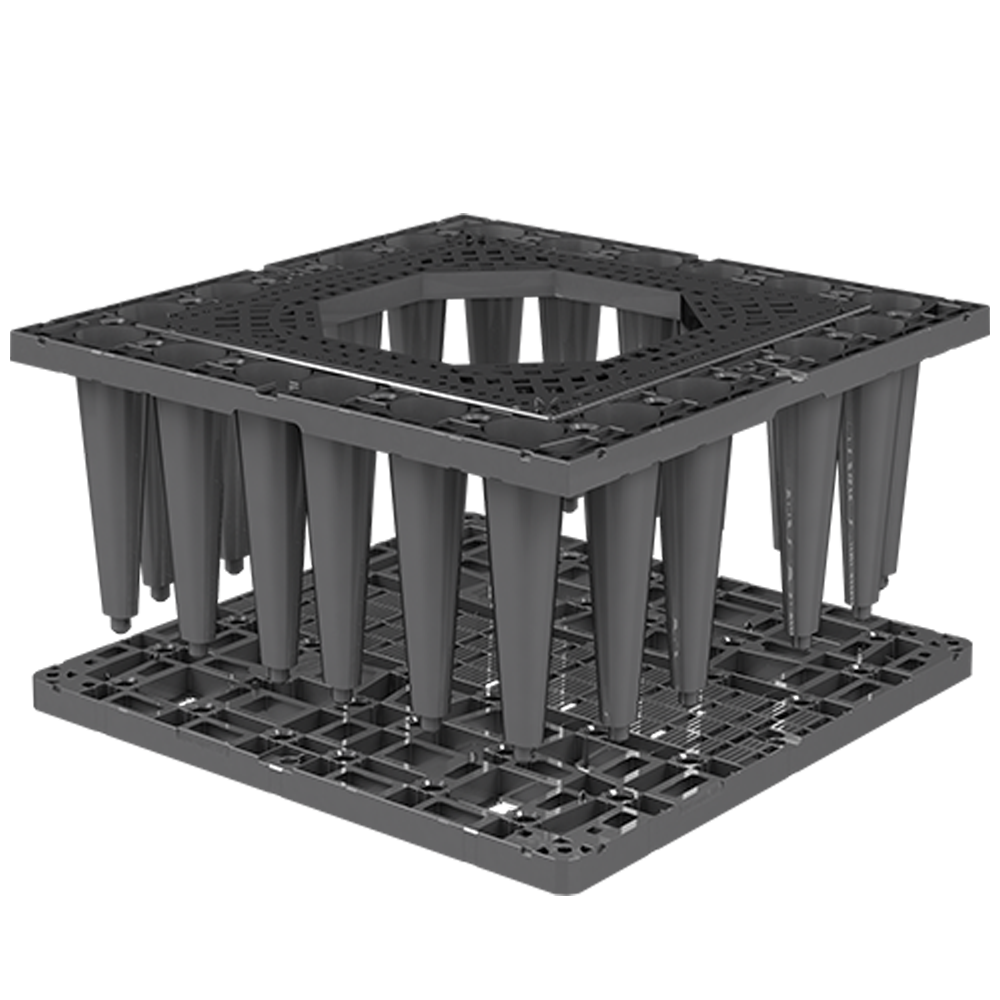

GRAF EcoBloc Inspect Smart Plus Shaft System
The GRAF EcoBloc Inspect Smart Plus Shaft module enables custom positioning of an inlet shaft or inspection shaft within the infiltration system.
Module Overview:
- Integrated connection surfaces up to DN250
- Clear width of 400mm (15.75 in.)
- Fully integrated within EcoBloc Stormwater Systems
- Compatible with Smart & Smart Plus modules
The GRAF EcoBloc Inspect Smart Plus Shaft module enables custom positioning of an inlet shaft or inspection shaft within the infiltration system. Module Overview: Integrated connection surfaces up to DN250...
The GRAF EcoBloc Inspect Smart Plus Shaft module enables custom positioning of an inlet shaft or inspection shaft within the infiltration system.
Module Overview:
- Integrated connection surfaces up to DN250
- Clear width of 400mm (15.75 in.)
- Fully integrated within EcoBloc Stormwater Systems
- Compatible with Smart & Smart Plus modules
Couldn't load pickup availability
Click on Part # to view technical drawing
| Part # / Model | Size | Description | Weight (lbs) |
|---|---|---|---|
| 450151 | 31.5" x 31.5" x 13" (800 x 800 x 330mm) |
EcoBloc Inspect Smart Plus shaft (1 Module) (56 USG / 211L) | 19 |
| 450160 | N/A | EcoBloc Inspect Smart Plus shaft cover plate | 11 |
| 402503 | N/A | GRAF EcoBloc Inspect Smart End Plates (Set of 2) | N/A |
| 402501 | 31" x 31" x 1.6" | GRAF EcoBloc Inspect Smart Baseplate | 9 |
| 450160 | N/A | GRAF EcoBloc Inspect Smart End Plates (Set of 2) | N/A |
