GRAF Drainstar Filter
The Drainstar filter boasts 100% water yield and is suitable for either pedestrian or vehicle loading. Maximum flow rate of 5.5 l/s with DN100 (4") connection, and maximum flow rate of 16 l/s with DN150 (6") connection.

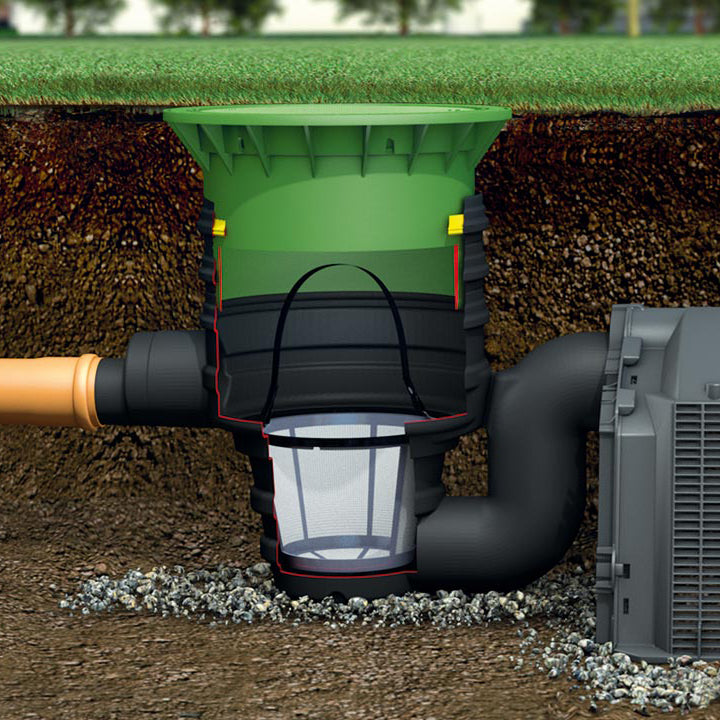

The telescopic dome shaft provides a continuously variable installation depth of 24" - 41" (600 - 1050 mm). This filter is ideally suited to infiltration and pond systems and can be sealed up to ground level, and includes a filter insert with mesh width of 0.35 mm.
The Drainstar filter boasts 100% water yield and is suitable for either pedestrian or vehicle loading. Maximum flow rate of 5.5 l/s with DN100 (4") connection, and maximum flow rate...
The Drainstar filter boasts 100% water yield and is suitable for either pedestrian or vehicle loading. Maximum flow rate of 5.5 l/s with DN100 (4") connection, and maximum flow rate of 16 l/s with DN150 (6") connection.
The telescopic dome shaft provides a continuously variable installation depth of 24" - 41" (600 - 1050 mm). This filter is ideally suited to infiltration and pond systems and can be sealed up to ground level, and includes a filter insert with mesh width of 0.35 mm.
Couldn't load pickup availability
Height: " | Width: " | Length: "
Click on Part # to view technical drawing
Pedestrian Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) | Product Page |
|---|---|---|---|---|---|---|---|
| 340143 | Drainstar filter external | 16 l/s | 550 (21.7") | 650 (25.6") | DN 100 (4")
|
11 (24 lbs) | Open Product Page |
| 340524 | Replacement filter basket | N/A | N/A | N/A | N/A | N/A | Open Product Page |
Vehicle Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) | Product Page |
|---|---|---|---|---|---|---|---|
| 340144 | Drainstar filter external | 16 l/s | 550 (21.7") | 650 (25.6") | DN 100 (4")
|
35 (77 lbs) | Open Product Page |
| 340524 | Replacement filter basket | N/A | N/A | N/A | N/A | N/A | Open Product Page |
