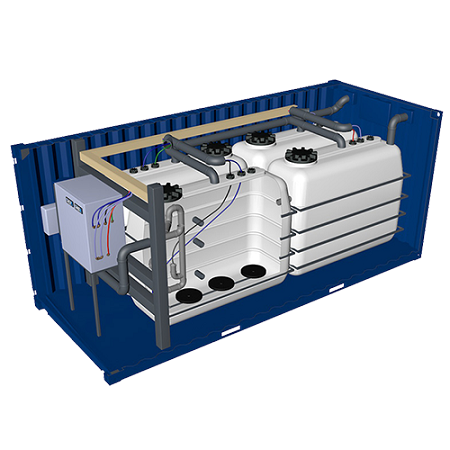

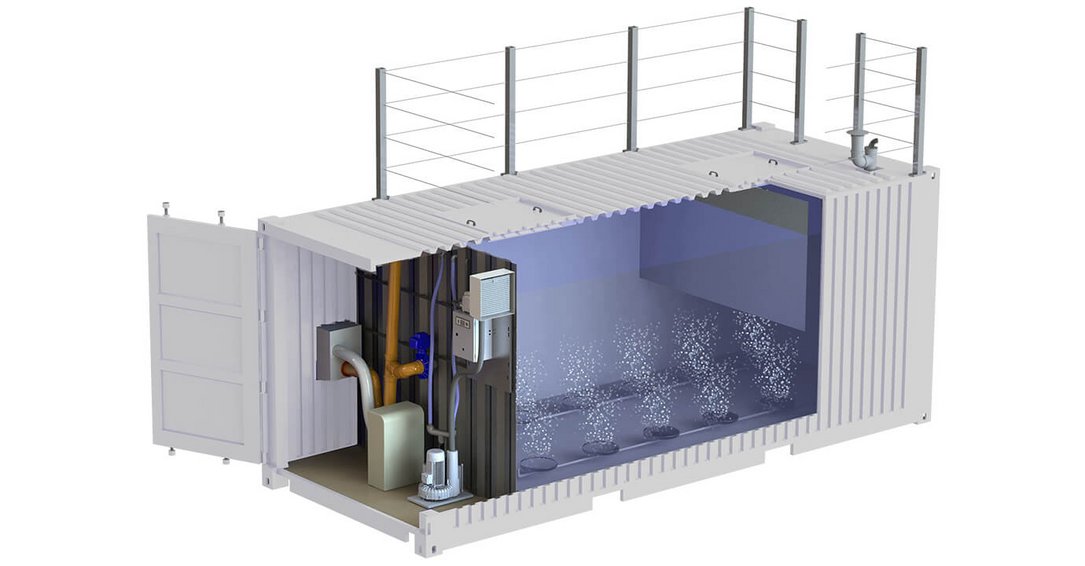

GRAF KLARO Container.One Portable Wastewater Treatment System
A complete wastewater treatment solution in a standard 20ft container, for easy transportation and setup in remote work locations for mining, military, logging and research camps. With the option to connect multiple Container.One units for increased LPD flow rates your wastewater treatment system is designed to grow with your operation.
A complete wastewater treatment solution in a standard 20ft container, for easy transportation and setup in remote work locations for mining, military, logging and research camps. With the option to...
A complete wastewater treatment solution in a standard 20ft container, for easy transportation and setup in remote work locations for mining, military, logging and research camps. With the option to connect multiple Container.One units for increased LPD flow rates your wastewater treatment system is designed to grow with your operation.
Couldn't load pickup availability
This product is a Special order item. Please contact Sales Representative through the "Request a Quote" below.
| Capacity | Daily Flow | Width (in / mm) |
Length (in / mm) |
Height (in / mm) |
Part # |
Description | Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR | |||||||
| 4226 | 3519 | 16000 | 10,000 LPD | 84.4 / 2114 | 238.5 / 6058 | 85.4 / 2169 | 160000 |
Container.One |
7010.7 |
Need a custom project made?
REQUEST A QUOTENeed help selecting the right product?
Specifications
| Container | 10 ft container | 20 ft container | 40 ft HC container |
|---|---|---|---|
| Dimensions (external) | |||
| Length | 2989 mm | 6058 mm | 12192 mm |
| Width | 2438 mm | 2438 mm | 2438 mm |
| Height | 2591 mm | 2591 mm | 2896 mm |
| Total capacity | 13,4 m³ | 30,4 m³ | 71,1 m³ |
| Weight incl. mounting parts | 2050 kg | 3150 kg | 5700 kg |
| Inlet pipe | |||
| Connection | DN 100 | DN 100 | DN 100 |
| External height | 2591 mm | 2591 mm | 2896 mm |
| Outlet pipe | |||
| Connection | DN 100 | DN 100 | DN 100 |
| External height | 945 mm | 945 mm | 900 mm |
| Recommended operating voltage | 400 V, 50/60 Hz | 400 V, 50/60 Hz | 400 V, 50/60 Hz |
| Recommended current load | 16 A | 16 A | 16 A |
| Power consumption | Approx. 12,9 kWh/d | Approx. 16,6 kWh/d | Approx. 33,8 kWh/d |
| Operating temperature range | -10°C ... +35°C | ||
| Standard calculated sludge removal interval | 3 months | ||
