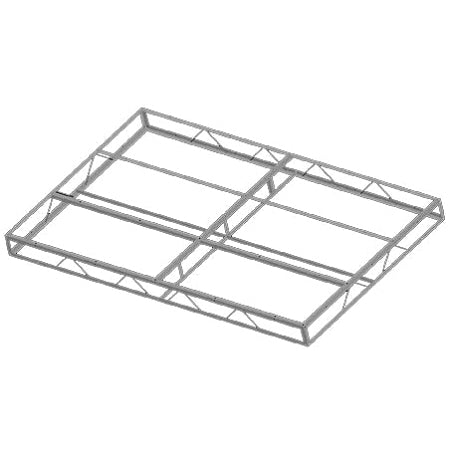

Galvanized Steel Dock Frame Sections & Hardware
Primarily for use in commercial docking systems, these hot-dipped galvanized steel frame sections can be bolted together with pre-hunched holes and heavy duty frame hinges. Connection hardware pieces are available for connecting multiple sections together.
Standard construction is 1.5 x 1.5 x 3/16 angle and 1/2 round bar and heavier duty frames are available with 2 x 2 x 3/16 angle.
Frames can be made with either 15 , 16 , 18 or 24 on center support beams down their length to match support requirements for specific decking products and special custom sizes are also available.
Primarily for use in commercial docking systems, these hot-dipped galvanized steel frame sections can be bolted together with pre-hunched holes and heavy duty frame hinges. Connection hardware pieces are available...
Primarily for use in commercial docking systems, these hot-dipped galvanized steel frame sections can be bolted together with pre-hunched holes and heavy duty frame hinges. Connection hardware pieces are available for connecting multiple sections together.
Standard construction is 1.5 x 1.5 x 3/16 angle and 1/2 round bar and heavier duty frames are available with 2 x 2 x 3/16 angle.
Frames can be made with either 15 , 16 , 18 or 24 on center support beams down their length to match support requirements for specific decking products and special custom sizes are also available.
Click on Part # to view drawing
Part # / Model | Size (ft) Â [L x W] | Description | Weight (lbs) | |
---|---|---|---|---|
Frame Sections | ||||
210S-1515-12 | 10 x 2 | Steel Dock Frame (12" On Center) | 154 | |
210S-1515-24 | 10 x 2 | Steel Dock Frame (24" On Center) | 148 | |
210S-2020-12 |
|
HD Steel Dock Frame (12" On Center) | 174 | |
210S-2020-24 |
|
HD Steel Dock Frame (24" On Center) | 166 | |
310S-1515-18 | 10 x 3 | Steel Dock Frame (18" On Center) | 157 | |
310S-2020-18 | 10 x 3 | HD Steel Dock Frame (18" On Center) | 201 | |
410S-1515-16 | 10 x 4 | Steel Dock Frame (16" On Center) | 180 | |
410S-1515-24 | 10 x 4 | Steel Dock Frame (24" On Center) | 174 | |
410S-2020-16 | 10 x 4 | HD Steel Dock Frame (16" On Center) | 233 | |
510S-1515-16 | 10 x 5 | Steel Dock Frame (16" On Center) | 231 | |
510S-1515-24 | 10 x 5 | Steel Dock Frame (24" On Center) | 225 | |
510S-2020-16 | 10 x 5 | HD Steel Dock Frame (16" On Center) | 327 | |
510S-2020-24 | 10 x 5 | HD Steel Dock Frame (24" On Center) | 319 | |
610S-1515-16 | 10 x 5 | Steel Dock Frame (16" On Center) | 251 | |
610S-1515-24 | 10 x 6 | Steel Dock Frame (24" On Center) | 243 | |
610S-2020-16 | 10 x 6 | HD Steel Dock Frame (16" On Center) | 340 | |
610S-2020-24 | 10 x 6 | HD Steel Dock Frame (24" On Center) | 332 | |
810S-1515-16 | 10 x 8 | Steel Dock Frame (16" On Center) | 298 | |
810S-1515-24 | 10 x 8 | Steel Dock Frame (24" On Center) | 292 | |
810S-2020-16 | 10 x 8 | HD Steel Dock Frame (16" On Center) | 418 | |
810S-2020-24 | 10 x 8 | HD Steel Dock Frame (24" On Center) | 410 | |
Hardware | ||||
TF-HF | N/A | Truss Frame Hinge Female | N/A | |
TF-HFD | N/A | Truss Frame Hinge Double Female | N/A | |
TF-HM | N/A | Truss Frame Hinge Male | N/A | |
TF-HMD | N/A | Truss Frame Hinge Double Male | N/A |
