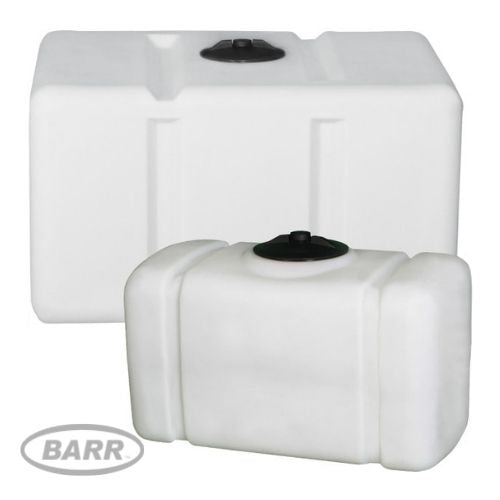

Flat Bottom Utility Tanks & Accessories
Flat bottom tanks can be used for stationary and portable applications, with or without bands. Manufactured from medium-density polyethylene with UV inhibitors, they're designed for containment of liquids up to 1.7 S.G.
Experience easy level viewing of your liquids thanks to the tank's transluscent walls. Its popular and space-efficient shape allows for use in truck and trailer mounted applications, such as washing systems, lubricants, de-icers and other non-hazardous chemicals.
Flat bottom tanks can be used for stationary and portable applications, with or without bands. Manufactured from medium-density polyethylene with UV inhibitors, they're designed for containment of liquids up to 1.7...
Flat bottom tanks can be used for stationary and portable applications, with or without bands. Manufactured from medium-density polyethylene with UV inhibitors, they're designed for containment of liquids up to 1.7 S.G.
Experience easy level viewing of your liquids thanks to the tank's transluscent walls. Its popular and space-efficient shape allows for use in truck and trailer mounted applications, such as washing systems, lubricants, de-icers and other non-hazardous chemicals.
Capacity | Part # / Drawing | Dia./ Width | Length (in) |
Height (in) |
Lid/Fill Opening (in) |
Fitting (in) |
Weight (lbs) | Avail. | |||
---|---|---|---|---|---|---|---|---|---|---|---|
USG | IG | LTR | Premium Weight 1.5-1.7 SG | CAD Part# | |||||||
5 | 4 | 19 | SP0005-RT + | N/A | 10 | 22 | 8 | 5 | N/A | 4 | |
6 | 5 | 23 | SP0006-5N + | N/A | 12 | 15 | 8 | 5 | N/A | 5 | |
6 | 5 | 23 | SP0006-2P + | N/A | 12 | 15 | 8 | 2 | N/A | 5 | |
7 | 6 | 26 | SP0007-RT + | N/A | 9 | 14 | 15 | 5 | N/A | 7 | |
16 | 13 | 61 | SP0016-MM + | N/A | 14 | 21 | 14 | 5 | N/A | 9 | |
20 | 17 | 76 | SP0020-OM + | N/A | 11 | 15 | 31 | 5 | 1/2 | 16 | |
26 | 22 | 98 | 43835 + | N/A | 18 | 25 | 20 | 8 | 3/4 | 14 | |
45 | 37 | 170 | 43837 + | N/A | 18 | 38 | 22 | 5 | 1 | 22 | |
45 | 37 | 170 | N/A | 45312 | 18 | 36 | 19 | N/A | 22 | ||
50 | 42 | 189 | 42341 + | N/A | 19 | 38 | 23 | 8 | 1 | 26 | |
50 | 42 | 189 | SP0050-RT | N/A | 19 | 38 | 23 | 8 | 1 | 26 | |
50 | 42 | 189 | 43610 + | N/A | 24 | 43 | 15 | 8 | N/A | 28 | |
52 | 43 | 197 | 43839 +** | 45313 | 24 | 43 | 15 | 5 | 1 | 28 | |
55 | 46 | 208 | SP0055-MM + | N/A | 18 | 18 | 44 | 5 | 1 | 30 | |
68 | 57 | 257 | LP0068-RT | N/A | 26 | 42 | 17 | 5 | 1 | 40 | |
80 | 67 | 303 | SP0080-RT +^ | N/A | 18 | 27 | 44 | 5 | 1 | 42 | |
100 | 83 | 379 | SP0100-RT | N/A | 27 | 43 | 28 | 8 | 1 | 41 | |
100 | 83 | 379 | 42343 + | N/A | 27 | 43 | 29 | 8 | 1 | 41 | |
100 | 83 | 379 | 43611 + | N/A | 27 | 41 | 30 | 8 | N/A | 41 | |
110 | 92 | 416 | 42349 ** low profile | 45315 | 35 | 48 | 18 | 5 | 1 | 59 | |
110 | 92 | 416 | LP0110-RT | N/A | 35 | 48 | 19 | 5 | 1 | 59 | |
150 | 125 | 568 | 42345 | N/A | 36 | 48 | 25-1/2 | 8 | 1 | 61 | |
200 | 167 | 757 | 42347 | N/A | 36 | 48 | 33-1/2 | 8 | 1 | 76 | |
200 | 167 | 757 | 43612 | N/A | 36 | 48 | 29 | 8 | N/A | N/A | |
200 | 167 | 757 | LP0200-RT | N/A | 48 | 60 | 19 | 8 | N/A | N/A | |
300 | 250 | 1136 | 44332 | N/A | 41.5 | 62.5 | 31 | 8 | N/A | N/A | E |
300 | 250 | 1136 | 43613 | N/A | 42 | 63 | 30 | 8 | N/A | N/A | |
300 | 250 | 1136 | LP0300-RT | N/A | 48 | 80 | 21 | 8 | 2 | 135 | |
300 | 250 | 1136 | LP0300-HT | N/A | 56 | 95 | 16 | 6 | 3 | N/A | |
500 | 416 | 1893 | 43843 | N/A | 48 | 92 | 31 | 8 | 1 | N/A |
Part # | Size | Description | No. of Bands |
---|---|---|---|
63551 | 19" x 18 1/2" x 23" | Band for 50 USG Utility Tank #42341 (ID: NG) | 2 optional |
63552 | 24" x 25" x 29 1/2" | Band for 100 USG Utility Tank #42343 (ID: NG) | 2 optional |
63553 | 24" x 34 1/2" x 39" | Band for 150 USG Utility Tank #42345 (ID: NG) | 2 optional |
63554 | 33" x 34 1/2" x 39" | Band for 200 USG Utility Tank #42347 (ID: NG) | 2 optional |
LP0300-SBP | Flat 2" W | Band for 300 USG Utility Tank #LP0300-RT | 2 optional |
