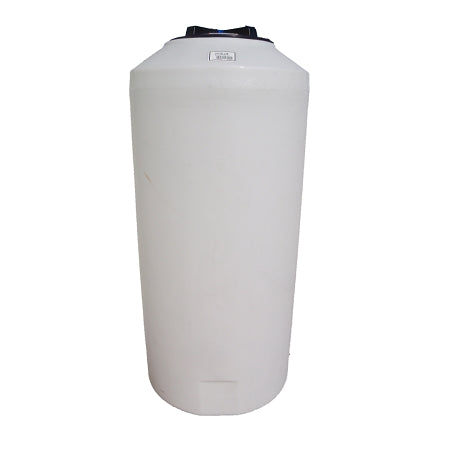

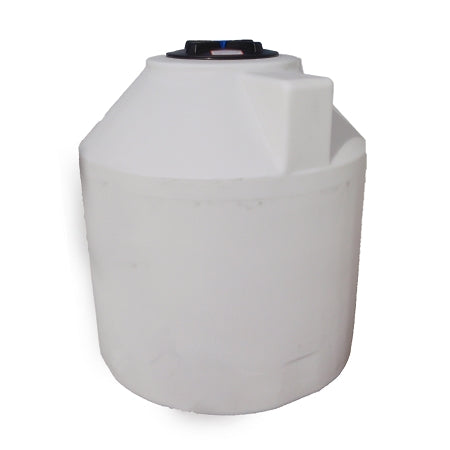

Dome Top Vertical Storage Tanks
Dome top tanks are ideal for indoor and outdoor storage and handling of water, wastewater and light chemical liquids with weights from 1.5 to 1.9 specific gravity(SG) (water = 1 SG). The maximum operating temperature for these tanks is 100° F (38° C) and they can handle short term temperature spikes up to 120° F (50° C).
Vertical storage tanks are generally the most economical shape and type of poly storage tank, providing durability with long lasting UV protection and excellent resistance to a wide variety of corrosive elements. Plus, they're available with a wide variety of fittings, accessories and add-ons from BARR, custom-modified to your specification. To find your required accessories, view Valves, Fittings, Pumps, Hose & Hose Clamps and Tank Stands, or contact BARR for assistance in selecting the best commercial grade products for your application.
Dome top tanks are ideal for indoor and outdoor storage and handling of water, wastewater and light chemical liquids with weights from 1.5 to 1.9 specific gravity(SG) (water = 1...
Dome top tanks are ideal for indoor and outdoor storage and handling of water, wastewater and light chemical liquids with weights from 1.5 to 1.9 specific gravity(SG) (water = 1 SG). The maximum operating temperature for these tanks is 100° F (38° C) and they can handle short term temperature spikes up to 120° F (50° C).
Vertical storage tanks are generally the most economical shape and type of poly storage tank, providing durability with long lasting UV protection and excellent resistance to a wide variety of corrosive elements. Plus, they're available with a wide variety of fittings, accessories and add-ons from BARR, custom-modified to your specification. To find your required accessories, view Valves, Fittings, Pumps, Hose & Hose Clamps and Tank Stands, or contact BARR for assistance in selecting the best commercial grade products for your application.
Couldn't load pickup availability
Click on Part # to view tank drawing
|
Capacity
|
Part # / Drawing
|
Dia./ Width (in)
|
Height (in)
|
Lid/Fill Opening (in)
|
Bottom/Top Fittings (in)
|
Weight (lbs)
|
Availability
|
|||
|---|---|---|---|---|---|---|---|---|---|---|
|
USG
|
IG
|
LTR
|
Premium Weight
1.5-1.7 SG
|
Heavy Weight 1.9 SG
|
||||||
| 10 | 8 | 38 | N/A | VT0010-12* | 12 | 25 | 8 | 3/4 | 9 | |
| 20 | 17 | 76 | N/A | VT0020-16* | 16 | 28 | 8 | 3/4 | 13 | |
| 22 | 18 | 83 | 43608 * | N/A | 20 | 20 | 8 | 3/4 | 13 | |
| 25 | 21 | 95 | 41867* | N/A | 18 | 29 | 5 | 3/4 | 13 | |
| 40 | 33 | 151 | N/A | VT0040-18* | 18 | 43 | 5 | 3/4 | 17 | |
| 50 | 42 | 189 | 41865* | N/A | 18 | 53 | 5 | 3/4 | 23 | |
| 55 | 46 | 208 | N/A | VT0055-20 | 20 | 47 | 5 | 1 | 22 | |
| 65 | 54 | 246 | 45192* | N/A | 23 | 43 | 8 | 1-1/4 | 26 | |
| 75 | 62 | 284 | 41863* | N/A | 23 | 49 | 8 | 1-1/4 | 28 | |
| 100 | 83 | 379 | 41861* | N/A | 28 | 43 | 8 | 1-1/4 | 34 | |
| 105 | 87 | 397 | 40803* | N/A | 23 | 63 | 8 | 2 | 38 | |
| 110 | 92 | 416 | N/A | VT0110-32 | 32 | 41 | 5 | 2 TOP | 40 | |
| 135 | 112 | 511 | N/A | VT0135-23 | 23 | 82 | 16 | 1 | 47 | |
| 150 | 125 | 568 | 41859 | N/A | 30 | 56 | 8 | 1-1/4 | 48 | |
| 165 | 137 | 625 | 40281 | N/A | 31 | 56 | 16 | 2 | 54 | |
| 195 | 160 | 730 | 41135 | N/A | 29.5 | 74 | 8 | E | ||
| 200 | 167 | 757 | 41856 | N/A | 30 | 72 | 8 | 2 | 52 | |
| 210 | 175 | 795 | 47401 | N/A | 32 | 67 | 16 | 2 | 59 | |
| 240 | 200 | 910 | 43201 | N/A | 29.5 | 91 | 8 | E | ||
| 250 | 208 | 946 | 41854 | N/A | 30 | 89 | 8 | 2 | 67 | |
| 300 | 250 | 1136 | 40213 | N/A | 36 | 79 | 16 | 2 | 79 | |
| 305 | 254 | 1155 | 40302 | N/A | 46 | 50 | 16 | 2 | 74 | |
| 305 | 254 | 1155 | 40303 | N/A | 46 | 50 | 16 | 2 | 74 | |
| 380 | 315 | 1435 | 41057 | N/A | 35 | 99 | 16 | E | ||
| 405 | 337 | 1533 | N/A | VT0405-52 | 52 | 48 | 8 | 2 | 90 | |
| 425 | 354 | 1609 | N/A | VT0425-42 | 42 | 75 | 8 | 2 | 100 | |
| 500 | 416 | 1893 | 40148 | 40150 | 48 | 73 | 16 | 2 | 105 | |
| 550 | 458 | 2082 | 40023 | N/A | 67 | 44 | 16 | 2 | 105 | |
| 600 | 500 | 2275 | 41061 | N/A | 48 | 84 | 16 | E | ||
| 600 | 500 | 2275 | N/A | VT0600-46 | 46 | 91 | 16 | 2 | 130 | |
| 625 | 520 | 2366 | N/A | VT0625-64 | 64 | 50 | 8 | 2 | 100 | |
| 750 | 625 | 2839 | 40606 | N/A | 48 | 103 | 16 | 2 | 155 | |
| 800 | 666 | 3028 | VT0800-46 | N/A | 46 | 118 | 16 | 2 | 175 | |
| 850 | 708 | 3218 | 42214 | N/A | 48 | 118 | 16 | 2 | 150 | |
| 900 | 750 | 3410 | 41065 | N/A | 48 | 116 | 16 | E | ||
| 900 | 749 | 3407 | VT0900-46 | N/A | 46 | 132 | 16 | 2 | 220 | |
| 960 | 800 | 3636 | 41067 | N/A | 61 | 83 | 16 | E | ||
| 1000 | 833 | 3785 | 40152 | 40154 | 64 | 80 | 16 | 2 | 175 / 200 | |
| 1080 | 900 | 4090 | 41069 | N/A | 48 | 149 | 16 | E | ||
| 1100 | 916 | 4163 | 40070 | 40081 | 87 | 53 | 16 | 2 | 185 / 210 | |
| 1200 | 1000 | 4542 | 44161 | N/A | 72 | 78 | 16 | E | ||
| 1200 | 1000 | 4542 | VT1200-64 | N/A | 64 | 97 | 16 | 2 | 275 | |
| 1502 | 1250 | 5682 | 41221 | 41223 | 87 | 65.5 | 16 | E/S | ||
| 1500 | 1249 | 5678 | 40144 | 40146 | 64 | 116 | 16 | 2 | 280 / 330 | |
| 1550 | 1291 | 5867 | 40235 | 40236 | 87 | 67 | 16 | 2 | 220 / 250 | |
| 1700 | 1416 | 6435 | 40010 | 40012 | 87 | 74 | 16 | 2 | 245 / 280 | |
| 1860 | 1550 | 7045 | 44224 | N/A | 90 | 78 | 16 | E | ||
| 2000 | 1665 | 7571 | VT2000-64 | N/A | 64 | 156 | 16 | 2 | 465 | |
| 2000 | 1665 | 7571 | 47109 | N/A | 64 | 152 | 16 | 2 | - | |
| 2040 | 1700 | 7730 | 41215 | N/A | 95 | 75 | 16 | S | ||
| 2100 | 1750 | 7955 | 41931 | N/A | 87 | 89 | 16 | E/S | ||
| 2100 | 1749 | 7949 | 40178 | 40241 | 87 | 89 | 16 | 2 | 305 / 350 | |
| 2100 | 1749 | 7949 | 41399 | N/A | 102 | 69 | 16 | 2 | 295 | |
| 2500 | 2082 | 9464 | 40051 | 40052 | 95 | 91 | 16 | 2 | 380 / 425 | |
| 2500 | 2100 | 9545 | 41258 | N/A | 95 | 89 | 16 | E/S | ||
| 3000 | 2500 | 11365 | 41263 | N/A | 95 | 107 | 16 | E/S | ||
| 3000 | 2498 | 11356 | 40754 | 40755 | 95 | 109 | 16 | 2 | 450 / 520 | |
| 3400 | 2831 | 12870 | VT3400-102+ | N/A | 102 | 107 | 16 | 2 | 585 | |
| 4000 | 3331 | 15142 | VT4000-96+ | N/A | 96 | 140 | 16 | 2 | 900 | |
| 4000 | 3331 | 15142 | 40312 | N/A | 102 | 125 | 16 | 3 / 2 | 756 | |
| 4200 | 3497 | 15899 | 41403 | N/A | 102 | 131 | 16 | 3 / 2 |
756 | |
| 4200 | 3497 | 15899 | VT4200-96 Split Top + | N/A | 96 | 148 | 16 | 2 | 950 | |
| 4800 | 4000 | 18185 | 41087 | N/A | 120 | 120 | 16 | E/S | ||
| 5000 | 4163 | 18927 | 40164 | 40166 | 102 | 152 | 16 | 3 / 2 | 986 / 1131 | |
| 5150 | 4288 | 19495 | VT5150-102 + | N/A | 102 | 161 | 16 | 3 | 1350 | |
| 5500 | 4579 | 20819 | 45086 | N/A | 138 | 92 | 16 | 3 / 2 | IA | |
| 6000 | 5000 | 22730 | 41972 | N/A | 120 | 140 | 16 | E/S | ||
| 6000 | 4966 | 22712 | 40226 | 40233 | 102 | 182 | 16 | 3 / 2 | 1331 / 1451 | |
| 6100 | 5079 | 23091 | 40659 | 40661 | 119 | 140 | 16 | 3 / 2 | 1286 / 1456 | |
| 6250 | 5204 | 23659 | N/A | VT6250-102+^ | 102 | 194 | 16 | 2 | 1550 | |
| 6500 | 5412 | 24605 | 40224 | 40232 | 119 | 150 | 16 | 3 / 2 | 1346 / 1506 | |
| 6500 | 5412 | 24605 | VT6500-120 + | N/A | 120 | 152 | 16 | 3 | 1502 | |
| 7000 | 5829 | 24498 | VT7000-142 + | N/A | 142 | 125 | 16 | 3 | 1750 | |
| 7800 | 6495 | 29526 | 40663 | 40665 | 119 | 176 | 16 | 3 / 2 | 1606 / 1806 | |
| 7800 | 6495 | 29526 | VT7800-120 + | N/A | 120 | 176 | 16 | 3 | 1900 | |
| 8000 | 6661 | 30283 | VT8000-120 + | N/A | 120 | 180 | 16 | 3 | 1930 | |
| 8400 | 6994 | 31797 | 42060 | 42062 | 119 | 188 | 16 | 3 / 2 | 1756 / 1856 | |
| 9000 | 7494 | 34069 | 43618 | 4362043620 | 141 | 146 | 22 | 3 / 2 | 1831 / 2031 | |
| 9150 | 7619 | 34637 | VT9150-120+ | N/A | 120 | 203 | 16 | 3 | 2200 | |
| 9500 | 7910 | 35961 | VT9500-120 + | N/A | 120 | 213 | 16 | 3 | 2352 | |
| 10000 | 8327 | 37854 | 43128 | 43130 | 141 | 160 | 22 | 3 / 2 | 2056 / 2256 | |
| 10015 | 8340 | 37915 | 44087 | N/A | 141 | 160 | 16 | E | ||
| 10500 | 8743 | 39747 | VT10500-2500+^ | VT10500-2800+^ | 142 | 177 | 16 | 2 | 2500 / 2800 | |
| 12000 | 9992 | 45425 | 43919 | 43921 | 141 | 193 | 22 | 3 | 2810 / 3310 | |
| 12500 | 10408 | 47318 | VT12500-142 + | N/A | 142 | 208 | 16 | 3 | 3402 | |
|
15000 |
12490 | 56781 | 43941 | 43943 | 141 | 244 | 22 | 3 | 3610 / 4160 | |
* = May be Shipped by UPS Oversize
+ = Indicates Tanks with Molded-In Heavy Duty Lifting / Tie-Down Lugs
^ = Available with 3" Fitting
