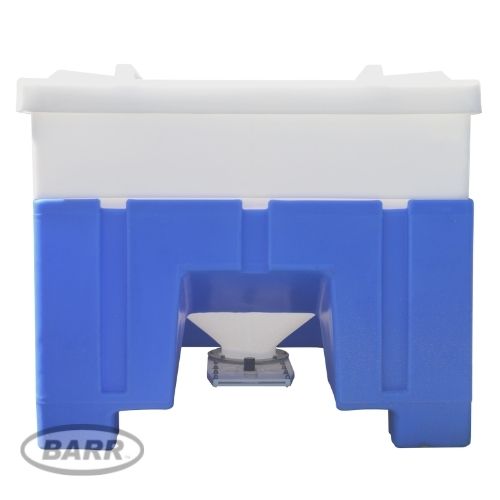

45° Bottom Discharge Hopper Bins
CFIA and FDA approved hopper bins are manufactured of food grade high density polyethylene for use in food processing facilities and food contact. The steep 45º angle on these hoppers allows fast and easy "free-flow" for complete discharge of granuals and other materials. The bins' lightweight construction and 4-way forklift or pallet jack entry allows for cost-effective transport and easy loading while their extra thick corners and floor resist impact and wear. Plus, they're stackable 2-high when full and 4-high when empty.
The innovative design on all hoppers permits workers access to the discharge valve without reaching under the hopper. The removable top on the 8090 allows easy hopper loading and clean-up and the closed top on 8091/8092 prevents moisture absorption. Additionally, 8096 models have larger 48" x 48" footprint and capacity with bottom discharge openings of 12" diameter standard and 8" optional.
Accessories:
- Discharge sleeve with drawstring
- Slidegate
- Flange Adapter
CFIA and FDA approved hopper bins are manufactured of food grade high density polyethylene for use in food processing facilities and food contact. The steep 45º angle on these hoppers...
CFIA and FDA approved hopper bins are manufactured of food grade high density polyethylene for use in food processing facilities and food contact. The steep 45º angle on these hoppers allows fast and easy "free-flow" for complete discharge of granuals and other materials. The bins' lightweight construction and 4-way forklift or pallet jack entry allows for cost-effective transport and easy loading while their extra thick corners and floor resist impact and wear. Plus, they're stackable 2-high when full and 4-high when empty.
The innovative design on all hoppers permits workers access to the discharge valve without reaching under the hopper. The removable top on the 8090 allows easy hopper loading and clean-up and the closed top on 8091/8092 prevents moisture absorption. Additionally, 8096 models have larger 48" x 48" footprint and capacity with bottom discharge openings of 12" diameter standard and 8" optional.
Accessories:
- Discharge sleeve with drawstring
- Slidegate
- Flange Adapter
Couldn't load pickup availability
Height: " | Width: " | Length: "
Bins
Click on part # to view drawing| Item / Description | Capacity |
Length
(Inches)
|
Width
(Inches)
|
Height (Inches) | Material | Tare Weight | Part # / Drawing | |
|---|---|---|---|---|---|---|---|---|
| Cubic Feet | Lbs/Kgs | |||||||
| 11.71 cu. ft. OT discharge hopper (31"H) w/ 10" slidegate | 11.5 | 2000 lbs / 907 kg | 44" | 44" | 31" | HDPE | 173 lbs | 8045 |
| 32 cu. ft. BTM discharge hopper (50"H) w/ 10"D slidegate | 32 | 2000 lbs / 907 kg | 44" | 44" | 50" | HDPE | 195 lbs | 8090 |
| 8091-OT 20 cu. ft. BTM discharge hopper (40"H) w/ 6"D s-gate - removable lid - open top | 20 | 2000 lbs / 907 kg | 44" | 44" | 40" | HDPE | 140 lbs | 8091-OT |
| 8091-CT 20 cu. ft. BTM discharge hopper (40"H) w/ 6"D s-gate - solid lid - 16" screwtop | 20 | 2000 lbs / 907 kg | 44" | 44" | 40" | HDPE | 140 lbs | 8091-CT- |
| 8091-CT-side lid 20 cu. ft. BTM discharge hopper (40"H) w/ 6"D s-gate - solid lid - 16" screwtop + 6" side lid | 20 | 2000 lbs / 907 kg | 44" | 44" | 40" | HDPE | 140 lbs | 8091-CT-SIDE LID |
| 8091-CT-side lid 20 cu. ft. BTM discharge hopper (40"H) w/ 6"D s-gate - solid lid - 16" screwtop + 6" side lid | 27 | 2000 lbs / 907 kg | 44" | 44" | 46" | HDPE | 175 lbs | 8092 |
| 46 cu. ft. BTM discharge hopper w/ 10"D slidegate (open top) | 46 | 2000 lbs / 907 kg | 44" | 44" | 64" | HDPE | 230 lbs | 8095 |
| 35 cu. ft. BTM discharge hopper (52"H) w/ 12"D slidegate | 35 | 2000 lbs / 907 kg | 48" | 48" | 52" | HDPE | 235 lbs | 8096-1 |
| 45 cu. ft. BTM discharge hopper (64"H) w/ 12"D slidegate | 45 | 2000 lbs / 907 kg | 48" | 48" | 64" | HDPE | 285 lbs | 8096-2 |
Accessories
| Part # | Description |
|---|---|
| 8090 LID | Lid only for 8090 hopper |
| 8090 SLIDEGATE | 8090 slidegate replacement |
| 8096 LID | Lid only for 8096 1 & 2 hopper |
| 8096 SLIDEGATE | 8096 slidegate replacement 12" |
