ANSI 150# Flange Fittings

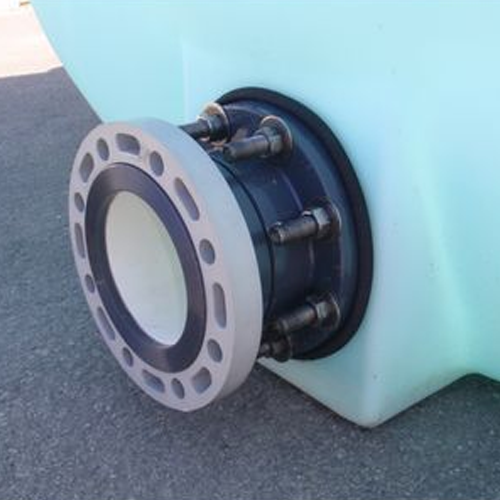

Available with either socket or threaded connections, BARR's Vanstone ANSI Flanges provide easy alignment to already fixed-in-place flanges. They're great for refits to existing piping systems and additions of valves or other liquid handling components due to their ease of adjustment and alignment.
For the socket connection model, the maximum internal pressure rating at 73°F (23°C) is 150 PSI.
For the threaded connection model, the maximum internal pressure rating at 73°F (23°C) is also 150 PSI.
Available with either socket or threaded connections, BARR's Vanstone ANSI Flanges provide easy alignment to already fixed-in-place flanges. They're great for refits to existing piping systems and additions of valves...
Available with either socket or threaded connections, BARR's Vanstone ANSI Flanges provide easy alignment to already fixed-in-place flanges. They're great for refits to existing piping systems and additions of valves or other liquid handling components due to their ease of adjustment and alignment.
For the socket connection model, the maximum internal pressure rating at 73°F (23°C) is 150 PSI.
For the threaded connection model, the maximum internal pressure rating at 73°F (23°C) is also 150 PSI.
Couldn't load pickup availability
Height: " | Width: " | Length: "
| Part # | Size (in) | Box/Case Qty. |
|---|---|---|
| 854-005 | 1/2 | 25 |
| 854-007 | 3/4 | 25 |
| 854-010 | 1 | 15 |
| 854-012 | 1-1/4 | 15 |
| 854-015 | 1-1/2 | 20 |
| 854-020 | 2 | 10 |
| 854-025 | 2-1/2 | 10 |
| 854P-030 | 3 | 10 |
| 854P-040 | 4 | 5 |
| 855-005 | 1/2 | 25 |
| 855-007 | 3/4 | 25 |
| 855-010 | 1 | 15 |
| 855-012 | 1-1/4 | 15 |
| 855-015 | 1-1/2 | 20 |
| 855-020 | 2 | 10 |
| 855-025 | 2-1/2 | 10 |
| 855-030 | 3 | 10 |
| 855-040 | 4 | 5 |
