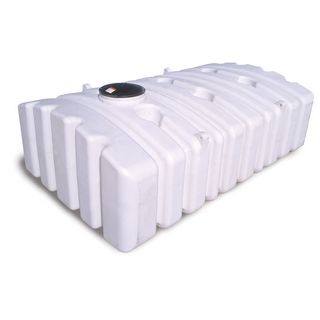

Aboveground Low Profile Water Holding & Hauling Tanks

The low profile tank is ideal for use as a stationary storage tank, aboveground or for use on trailers or in the back of trucks during transport.

Their low profile design means a low center of gravity to reduce tipping hazards and improve visibility. Slosh reduction ribs also provide excellent structural support.

See the Baffle Balls-Liquid Surge Stabilizers section for information on use of these items to eliminate sloshing and surging forces when starting, stopping and turning a vehicle mounted with a transport tank. Baffle Balls pay for themselves quickly in reduction of costly vehicle maintenance and much improved driving safety.

The low profile tank is ideal for use as a stationary storage tank, aboveground or for use on trailers or in the back of trucks during transport. Their low profile...
Read More

The low profile tank is ideal for use as a stationary storage tank, aboveground or for use on trailers or in the back of trucks during transport.

Their low profile design means a low center of gravity to reduce tipping hazards and improve visibility. Slosh reduction ribs also provide excellent structural support.

See the Baffle Balls-Liquid Surge Stabilizers section for information on use of these items to eliminate sloshing and surging forces when starting, stopping and turning a vehicle mounted with a transport tank. Baffle Balls pay for themselves quickly in reduction of costly vehicle maintenance and much improved driving safety.

Click on Part # to view tank drawing

Low Profile Aboveground Tanks
Capacity Part # / Drawing Dia./ Width (in)
 Length (in)
 Height (in)
 Lid/Fill Opening (in)
 Fitting (in)
 Weight (lbs) Availability
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
50 42 189 LP0050-RT N/A 24 42.5 14.5 8 1 26
68 57 257 LP0068-RT N/A 26 42 17 5 1 40
110 92 416 LP0110-RT N/A 35 48 19 5 1 59
200 167 757 LP0200-RT N/A 48 60 19 8 N/A N/A
300 250 1136 LP0300-RT N/A 48 80 21 8 2 135
300 250 1136 LP0300-HT N/A 56 95 16 6 3 132
300 250 1136 45317 N/A 56 95 16 6 3 132 E
366 305 1386 E305LP N/A 59 73 25 16 N/A N/A
500 416 1892 44643 N/A 52 130 23 8 N/A N/A M
600 500 1900 43149 N/A 72 96 29 16 N/A N/A E
600 500 2273 G500LP N/A 88 80 23 16 2 355
1000 832 3785 45735 N/A 90 134 21 8 N/A N/A M
1201 1000 4546 G1000LP N/A 88 152 23 16 2 465
1250 1075 4732 42890 N/A 84 131 36 16 2 355 E
1590 1325 6025 42891 N/A 84 131 42 16 2 465 E
1610 1340 6090 43157 N/A 80 126 53 16 2 465 E
2520 2100 9545 44335 N/A 90 157 51 16 2 E
